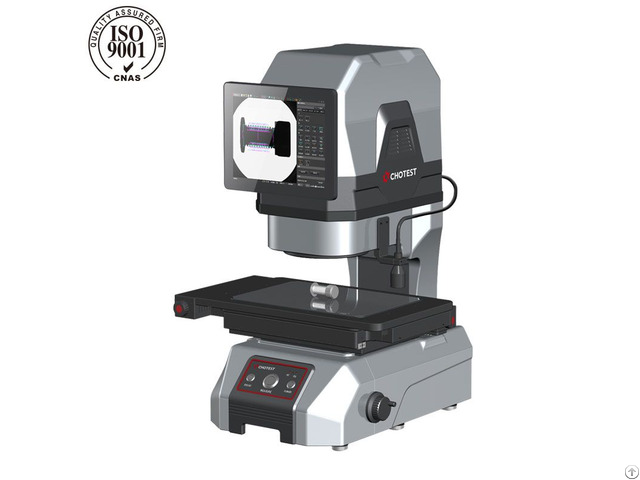

Flash Measuring Machine Vx8000 Series - China

Item No: VX8300

Product name: Flash Measuring Machine

Image Senor: 20M CMOS

Field of view： W300mm×L200mm

Resolution : 0.1μm

Loading Capacity: 7.5kg

Size(LxWxH): 531×503×731mm

Weight: 75kg Description

Based on visual measurement principle with precision image analysis algorithms, equipped with double telecentric optical lens with high depth of field, VX8000 series of Flash Measuring Machines achieve fast dimensional measurement by one-key operation.

VX8000 series are suitable for precise dimensional measurement in the fields of machinery, electronics, molds, injection molding, hardware, rubber, low-voltage electrical appliances, magnetic materials, precision stamping, connectors, connectors, terminals, mobile phones, home appliances, printed circuit boards, medical equipment, watches, cutting tools, etc.

Stratistics

The trend graph displays the regular trend of the measured values, such as the monotonic and periodic change of the measured values, which can be used for monitoring the abnormality of the production process of producing equipment.

Reflecting the status and distribution of fluctuations in product quality, the histogram can intuitively expose information about the quality situation in producing process, which can be used to predict product quality and failure rate.

Through quality diagnosis and analysis with statistical methods, SPC can monitor the product quality and changing trend of the producing process.

With SPC we can find the preventive solution in the producing process, so that the subsequent inspection and repair are reduced.

Consequently, the producing process control and product quality improvement are achieved.

Company Contact:

• Posted By: Chotest Technology Inc.

• Phone: 86-755-83318988-227

• Address: 2th floor, Building B1, Zhiyuan,Xueyuan Road No.1001,Xili,Nanshan,, Shenzhen , GuangDong , China

• Email:

• Website: https://www.chotest.com

• Business Description: From Manometer to Hectometre.

  We Provide professional precision measurement solutions.

  HOTEST is a national high-tech enterprise integrating research, development, production and sales.

  Committed to the design and production of precision measuring instruments and calibration instruments.

  Since the company established, we insist on technological innovation as the basis of development.

  With more than15 years of development, our company has accumulated rich practical experience and established a strong professional technical team in optics, mechanics, electronics and information technology, also owns a number of technology patents and software intellectual property rights.

  We have unique designing and manufacturing advantages in Micro-Nano motion, 3D Reconstruction of Micro-Nano measurement, 3D Form and Surface Analysis of Micro-Nano measurement, Large-scale 3D Measurement, Precision Sensing Probe, Control & of Glass-Scale and Guide Rail etc.

  That is why we have ability to provide our customers with professional precision measurement solution from nano meter to hundred meter.
