Ultrasonic Thickness Meter Rum7401 - China

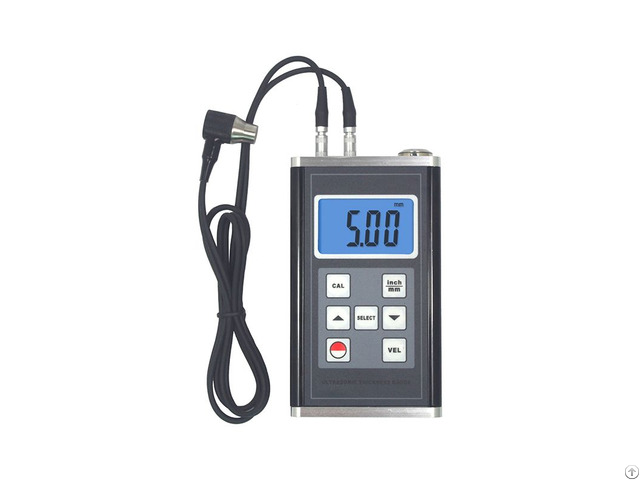

Ultrasonic Thickness Meter RUM7401

1 - Spec:

Used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc.

in industries of petroleum, shipbuilding, power station, and machine manufacturing.

2 - Features:

* Using the latest high performance and low power consumption microprocessor technology.

* Bidirectional measurement, for materials within measurement range, thickness is measurable with know velocity, Conversely velocity is measurable with know thickness.

* Automatic memory material code and sound velocity value, convenient to use.

* Coupling symbol indication.

* Use USB/RS-232 data output to connect with PC.

* Provide Bluetooth data output choice.

3 - Specifications:

Display: Large Screen LCD

Housing Material: Aluminum Alloy

Measuring Range: 0.75~400mm(45#steel, Depend on Probe)

Resolution: 0.01mm/0.1mm/0.001 inch

Accuracy: ±(0.5%n+0.05)

Sound Velocity: 1000~9, 990m/s

Lower Limit of Pipes: Φ15x2.0mm Φ20x3.0mm(Determined By Transducer)

Operating Conditions: Temperature: 0~40º; Humidity: <85%RH

Power Supply: 2x1.5V AA(UM-3)Battery

Dimensions: 130x76x32 mm

Weight: 340g(Not Including Batteries)
