Cst 50 Charpy Impact Specimen Gap Projector - China

price: 1500.00 Dollar US$

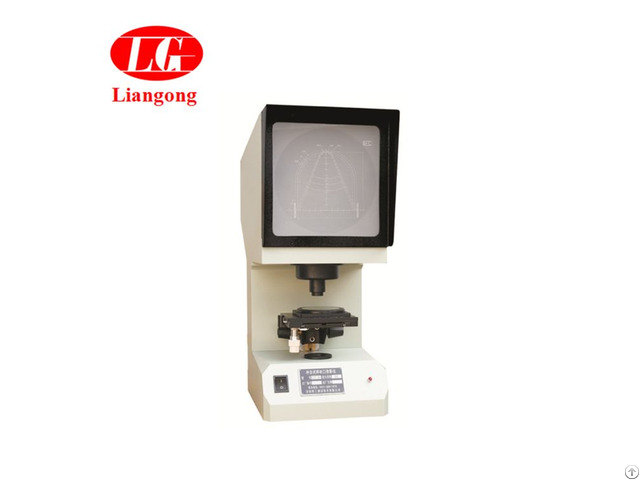

Cst 50 Charpy Impact Specimen Gap Projector

Products Photos Catalog Cst Charpy Impact Photos Catalog

The impact test has strict requirements on the notch of the impact specimen, and the small change of the notch will cause a large deviation of the test result.

In order to ensure the gap of the impacted specimen is qualified, the inspection of the quality of the gap is an important control method.

At present, optical projection magnification inspection is the only practical method that can guarantee the quality of the impact of the sample.

CST-50 Charpy projector is a special design and development of our company according to ASTM E23-02a "Standard Impact Test Method for Material Notch Specimens" 7.1.3 and GB/T229-2007 - It is a special optical instrument for checking the quality of the notch processing of Charpy V-type (deep 2mm) and U-type (deep 2mm) impact specimens.

It is a Special equipment for the physical and chemical laboratories of metallurgy, boiler and pressure vessel, vehicle and shipbuilding and engineering machinery manufacturing and scientific research departments.

The screen of the device is marked with a clear scale and marked with tolerance band, angle value and depth line, which can accurately read the notch error and meet the American standard and European standard ASTM E23, EN 10045, ISO 148, ISO 83, GB/T229- 2007 and other international standards related requirements.


Company Contact:


  • Phone: +86 18854162067

  • Address: Room 605, Fortune Times Square,Jingshi Road, Huaiyin District, Jinan , Shandong , China

  • Email: Email


Published date: October 21, 2021

  • Business Description: Our factory is the professional manufacturer in the Chinese Material Physical Testing Machine Industry, which include the UTM and TTM series, Impact Test series, Compression Test series, Cupping Tester series, Hardness Tester and Metallographic products, etc.
