    • Tape Casting Coater With Top And Bottom Heating - China

    price: contact company for price

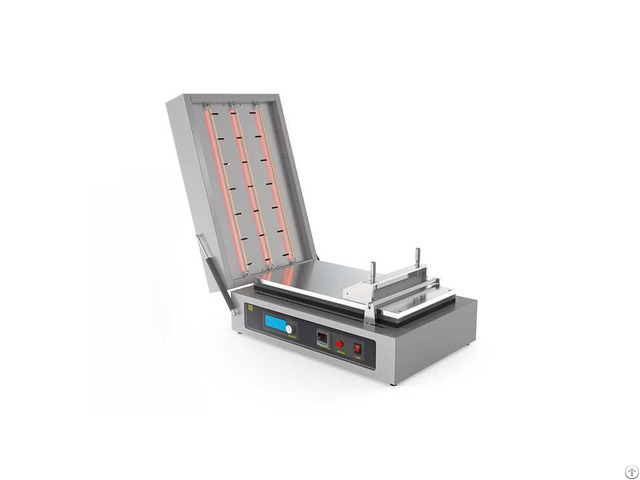

    Tape Casting Coater With Top And Bottom Heating

    Products Photos Catalog Tape Casting Coater Photos Catalog

    This heating tape casting coater is widely used in various high-temperature coating films, such as ceramic films, crystal films, battery material films, and special nano-films; it can adapt to the future development of film-forming science and technology under high temperature conditions.

    The product has passed CE certification.

    Main features:

    1 - Drying system with strong wind heating and digital display temperature control, the maximum working temperature is 200C;

    2 - The coating film speed is adjustable in the range of 0~100mm/sec, and has digital display;

    3 - Vacuum aluminum plate, available Quickly place or remove the substrate; 4 - The stroke can be adjusted by the travel switch between 10~250mm;

    5 - With a doctor blade that adjusts the thickness of the coating film (accuracy 0.02mm) width 0-150mm;

    Technical parameter

    Heating Top UV (WL: 365nm)

    Bottom heating, 120ºC

    Coating speed 0-100mm/s adjustable

    Accuracy: 10mm/s

    Coating stroke 10-250mm adjustable

    Vacuum aluminum plate 360mm×200mm (Length×Width)

    Vacuum pump Oil-free vacuum pump

    Filmmaker 100mm micron adjustable, adjustable range 0.01mm-3.5mm

    Including stroke pusher and waste plate, used to push the film maker

    Voltage 220V 50HZ


    Company Contact:


    • Phone: +86 371 5519 9322

    • Address: No. 820, 8th Floor, 1st Unit, 9th Block, Cuizhu Street, High-Tech Zone, Zhengzhou, Henan, China, zhengzhou , henan , China

    • Email: Email


    Published date: August 1, 2020 - Modified date: August 1, 2020

    • Business Description: Founded in 2013 by a group of professional engineers.

      CY is a high and new technology enterprise registered in Zhengzhou,Henan province.

      CY Scientific Instrument mainly provide regular furnace for lab.

      Also do customized furnace and some other related accessories and equpments in high quality and low cost precision machines for material research and R&D lab.
