Multi Nozzle Vacuum Spray Pyrolysis Coating Machine - China

Spray pyrolysis film formation method is to spray the solution on a heated base after atomizing the solution, and then obtain the desired material structure on the substrate.

This material preparation method is particularly suitable for depositing oxides, and has a long history in the application of preparing transparent electrodes.

This method is now widely used in the preparation of perovskite solar cells.

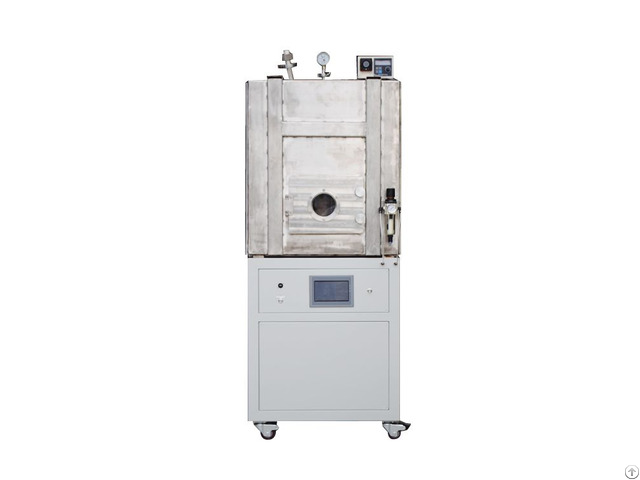

This equipment adds a multi-nozzle coordination system and a vacuum system on the basis of ordinary pyrolysis spraying.

It is equipped with three high-pressure gas-driven atomizing nozzles and matching anti-dripping baffles.

It can work together through the touch screen to make Multi-layer film.

The vacuum system can provide a basic vacuum of 5000Pa, and can be sprayed and pyrolyzed under a protective gas environment after being filled with an inert gas.

In addition, the instrument also has a high-precision peristaltic pump and a precision-programmed stepping motor moving mechanism.

At the same time, the substrate temperature can also be controlled to meet your various test needs.

Technical parameter

Supply voltage AC220V, 50Hz

Spray booth 690mm * 690mm * 790mm

Atomizing head High-pressure air atomizing nozzle * 3

Each nozzle is equipped with a high-pressure gas-driven baffle to prevent dripping

Pressure regulator Adjustable compressed air intake

Maximum power 3.5KW (including compressor + peristaltic pump about 1.5KW)

Liquid viscosity 1-50mPa·s (cP)

Nozzle stroke X-Y axis up to 180mm

Moving speed 0-250mm / s (x-axis direction)

0-250mm / s (Y-axis direction)

Heating substrate 200mm *200mm

Maximum temperature 500 ℃

Temperature control method AI-PID temperature control

Drop coating tank capacity 50mL / 250mL / 50mL (with one big, two small and three jars)

Dispensing rate of peristaltic pump 0.006-41mL / min

Vacuum pump Bipolar Rotary Vane Vacuum Pump

Vacuum gauge Mechanical vacuum gauge

Ultimate vacuum degree ≤5000Pa

Control method Industrial computer + instrument panel

Dimensions 900mm * 900mm * 1750mm
