Stainless Steel Shell 10 000 Rpm 8 Inch Spin Coater With Pp Cavity And Plexiglass Cover - China

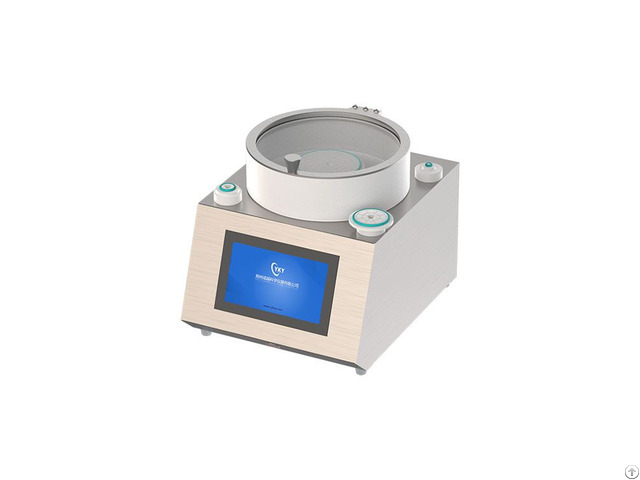

stainless steel eight-inch spin coater CY-SPC8-BXG.

After being miniaturized, this model of spin coater adopts stainless steel shell, PP cavity and plexiglass cover, which is beautiful and firm.

The instrument adopts advanced precision motor, and the rotation speed can reach 10, 000 rpm, which effectively guarantees the uniformity of the film formation.

In addition, the instrument is controlled by a touch screen, which can preset a uniform curve, which greatly simplifies the use process and reduces the learning cost, which is very suitable for laboratory purchase.

Application

The spin coater can coat liquid or colloidal materials on silicon wafers, crystals, quartz, ceramics and other substrates to form thin films.

It is mainly used in the fields of photoresist spin coating, biological medium production, and sol-gel method to produce polymer films.

Technical parameter

Supply voltage AC220V, 50Hz

Rotating speed 0~10000rpm

Acceleration 100~5000rpm/s

Speed resolution 1rpm

Step time 3000s

Substrate size Diameter ≤8 inches (200mm)

Material Stainless steel case PP cavity plexiglass upper cover

Operation method 7 inch HD LCD touch screen

Epoxy method Manual dispensing, optional precision injection pump

Homogenization curve 5 segments per curve, 5 curves can be stored in total

Pumping interface φ8mm quick-twist interface

Overall size 290mm×365mm×260mm

Total Weight 12kg Vacuum pump Dry mechanical pump

Pumping rate 1.1L/s

Power supply AC220V 50/60Hz
