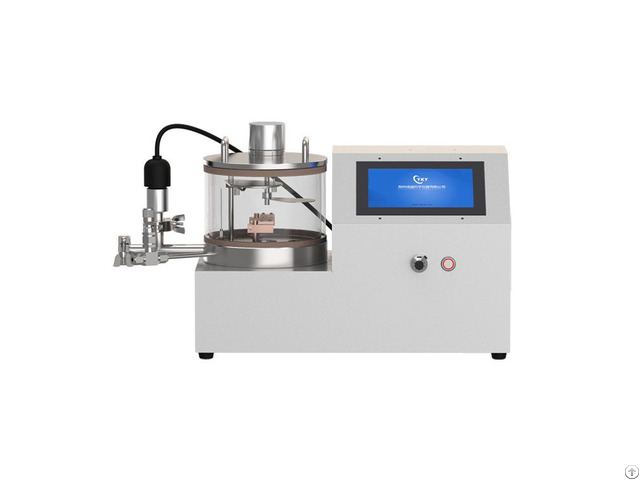

Small Thermal Evaporation Coating Machine For Glove Box - China

CY-EVP180G-GLV small thermal evaporator can be used for vacuum evaporation deposition coating and the coating current can reach up to 100A.

This type of small evaporation coating instrument has a wide range of applications and can prepare various metal thin films and some non-metal thin films, so it is widely used in electrodes and organic light emitting LED preparation.

The instrument has a small size and a miniaturized design, which can effectively save laboratory space.

It is specially designed for use in a glove box; it is simple to operate and has strong adaptability to different materials, making it very suitable for laboratory purchases.

Characteristics:

1 - Quartz chamber, easy to clean and put in samples;

2 - Tungsten wire basket or tungsten boat is the heating source, the highest temperature can reach 1700℃;

3 - Inert gas can be introduced into the vacuum chamber to clean the chamber, or reactive gas can be introduced to perform reactive evaporation coating.

4 - The air inlet is equipped with a needle valve to adjust the air flow.

Technical parameter

Item Detail

Supply voltage AC220V, 60Hz

Max power 1000W

Sample stage Diameterφ60mm；

Quartz chamber O.

Dφ180mm x I.

Dφ166mm x 100mm

Evaporation source Tungsten basket/tungsten boat

Max temperature 1700℃

Thermocouple B-type, working temperature 200℃~1500℃

Vacuum gauge Resistance type vacuum gauge

Vacuum interface KF16

Inlet interface φ6.35mm Bite type fittings

Vacuum pump No, the customer provides it

Dimensions 330x250x580mm
