Anodized Aluminum Alloy Chamber 8 000rpm Spin Coater - China

The spin coater can coat liquid or colloidal materials on silicon wafers, crystals, quartz, ceramics and other substrates to form thin films.

It is mainly used in photoresist spin coating, biological medium preparation, sol-gel method for polymer film production, etc.

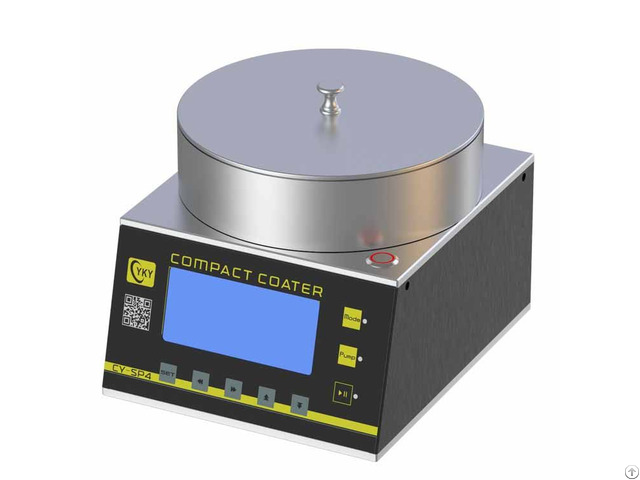

CY-SPC4-D spin coater is designed small, and the whole body adopts aluminum alloy structure and anodized aluminum alloy chamber.

The spin coater adopts advanced precision motor, the maximum speed can reach 8, 000rpm; the control relies on the button and the high-brightness LCD screen, in addition to direct spin coating, it can pre-store the spin coating curve for program-controlled spin coating.

The instrument effectively guarantees the performance and function of the instrument under the premise of greatly reducing the volume, which is very suitable for laboratory purchase.

Small spin coater technical parameters:

upply voltage AC220V, 50Hz

Spin speed 0~8000rpm

Acceleration 100~5000rpm/s

Speed resolution 1rpm

Single step time 3000s

Substrate size Diameter ≤ 4 inches (100mm)

Vacuum sucker Diameter 10mm/25mm/55mm

Vacuum pump Oil-free vacuum rotary vane pump

Chamber material Plexiglass

Operation method Button + LCD screen

Dispensing method Manual dispensing, optional precision syringe pump

Coating curve 5 segments per curve, a total of 5 curves can be stored

Pumping port Φ8mm quick screw joint

Overall size 210mm×250mm×180mm

Total Weight 8kg

Vacuum pump Dry mechanical pump

Pumping rate 1.1L/s

Power supply AC220V 50/60Hz
