Co2 Shaking Incubator Ce And Iso9001 Certificated - China

Product Overview

1 - Stack up to three units high, Space-saving and high-capacity.

2 - Triple-e ccentric drive is precisely counterbalanced to impart smooth, uniform motion to all flasks regardless of their position on the platform.

3 - Audible and Visible Alarms alert the user and shuts off heaters to setpoint

deviation.

4 - Automatic restart after power interrupt with Non-Volatile Memory keeps

studies running smoothly.

5 - Streamlined shape, backing finish outer cover and stainless interior chamber with rounded corners easy to clean and protect bacteria breeding.

6 - Glides up door which is non-screw design and slide-out platform provide

easy access to all samples.

Each machine operates independently.

7 - High quality and low noise imported CFC free compressors ensure

refrigeration effect and stable.

8 - The EMC (Electromagnetic Interference) design makes machine more

accurate and stable.

9 - Open-Door Cutout Switch stops agitation when chamber is open providing

a more favorable work environment.

10 - With ultraviolet sterilization function.

Specialities

1 - The stainless steel frames with heating function around door class can adjust the temperature as user’s need.

2 - Mobile and PC monitor(Option)

3 - Importe d infrared CO2 sensor measures the CO2 concentration automatically with high sensitivity.

Matching

controller, solenoid valve and pressure reducing valves are all installed.

4 - Built-in humidity control, ranging from ambient humidity to 95%.

The bottom of the chamber can be washed thoroughly.

5 - Servo-motor makes speed control precisely and ensures high-speed performance and stability.

6 - Insulating and tempered door glass as well as the stainless steel frames with heating function avoid

condensation effectively, also provides good view of incubating state without opening lids.

7 - Special refrigerating process with adjustable cooling capacity makes temperature control more accuracy.

8 - Timing frost-removing function, the timing range is 1to 89minutes and the defrost interval is 30-600 minutes

adjustable, ensures machine working long time in low temperature without ice block.

9 - LCD Touch Screen that making parameters setting and viewing easily.

Such as:

a.

The setting temperature, speed, time and the real temperature, speed, remaining time are shown simultaneously.

b.

Keyboard blocking prohibits miss operation.

c.

Setting rotation direction is positive or reverse.

d.

Setting circulation fan opens normally or automatically.

e.

Data memory function can check the history record within 3 months.

f.

Such data curves as temperature and speed can be displayed.

g.

The data easily transfer through the USB interface.

10 - The right side of the door is a whole molding design, the top 7 inch color touch screen, the central board design

under the transparent box which registration card can be placed.

11.

(Option)Embedd ed fabric curtain stretching repeatedly and not easy to damage, completely avoids light influence on culture.

12 - For each shaker, a bottle of CO2 gas (20kg) can be used not less than 35 days if the door is open normally, and about 145 days when door is not opened.

13 - The plastic molding clamps make it easily to put and take flasks with one hand.

14.

(Option) Built-in humidity control, ranging from ambient humidity to 95%.

Specifications

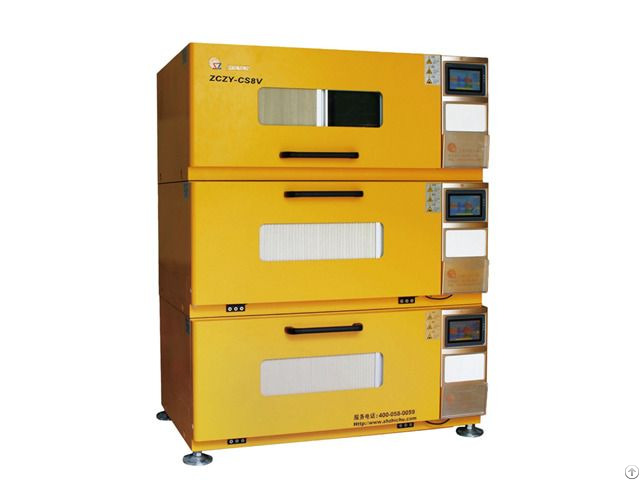

1-Unit Stacked Incubator

2-Units Stacked Incubator

3-Units Stacked Incubator

Model ZCZY-AS8V ZCZY-BS8V ZCZY-CS8V

Shaking Range 10-300rpm

Shaking Control ±1rpm

Orbit (diameter) φ50mm (standard)φ26mm(optional )

Temp.

Range 4℃～60℃(at 23℃～25 ℃)

Temp.

Accuracy ±0.1℃

Temp.

Uniformity ±0.5℃(at 37℃)

CO2 Measuring Range 0-20%

CO2 Accuracy 0.1%

Display LCD (Touch Screen)

Air circulation Forced air circulation

Parameter Control P.I.D Microprocessor

Max.

Capacity

(Stainless steel clamps) single 250ml×66 or 500ml×45 or 1000ml×28 or 2000ml×15

Max.

Capacity

(Plastic cement clamps) single 250ml×60 or 500ml×40 or 1000ml×23 or 2000ml×15

Timer Range 0-999.9 hrs.

Platform Size

(L×W) single 928mm×530mm

Standard Platform Universal Platform(Dedicated Platform optional)

Power Source AC220±10% 50~60Hz

Overall Dimensions

(L×W×H) 1360mm×845mm×630mm 1360mm×845mm×1185mm 1360mm×845mm×1740mm

Wei ght 264kg 482kg 678kg

Noise Level <55dB
