Cvd Tube Furnace - China
price: contact company for price

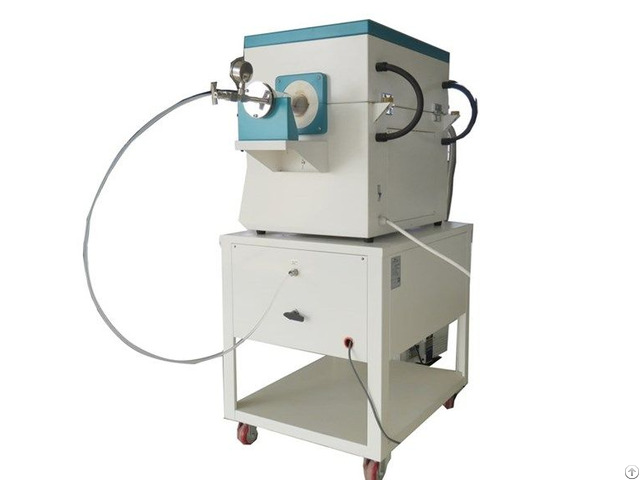

CHY-T1260A-3Z4C 1200 degree CVD system with O.
D60*1000mm Quartz Tube CVD machine CVD Tube Furnace Price 1 - O.
D60*1000mm high purity quartz tube
2 - High quality ceramic fiber chamber
3 - PID Programmable controller
4 - Three gas way mass flow controller with precision gas flow controller
5 - Two stage Vacuum Pump
5 - Made by Henan Chengyi CVD machine APPLICATION
1 - Laboratory heat thermal processing
2 - High Vacuum Sintering Heating Annealing Brazing
3 - Laboratory Thin Film Preparation, Nano tube growthing
4 - Laboratory CVD system, graphene growthing, preparation.
PRODUCT PARAMETERS
Product Name 1200 degree CVD Furnace
Modle No.
CHY-T1260A-3Z4C
Heating zones Single heating zone
Heating zone length 400mm
Constant temperature zone length 200mm
Tube Material high purity quartz tube
Tube diameter O.
D60*I.
D54*1000mm Quartz Tube
Tube Length 1000mm, 750mm, 1000mm, 1200mm as enquiry
Thermcouple K type
Maximum heating temper 1150 dgree
Heating rate 20c/min, adjustable
Heating element Fe-Co-Al alloy
Sealing Method stainless steel vacuum flange
Vacuum Air-tightness 9.8×10-4Pa
Temperature Accuracy ±1℃
Control Mode Intelligent PID programmable Control
Mass Flow Controller 3 gas way mass flow controller
Flowmeter Core 304 stainless steel
Measure Accuracy +/- 1.0% F.
S
Pressure Range -0.1~0.15MPa
A way gas range 0~100SCCM
B way gas range 0~200SCCM
C way gas range 0~500sccm
Vacuum Pump 4C
Power Supply AC220V 50Hz Our product such as lab ball mill and compact muffle furnace are widely sold to America, UAE, European, South Africa etc.
With Own R&D team and factory.
Company Contact:
- Phone: 860371-55027790
- Address: 136 yard, 10th Avenue,jingkai Area, zhengzhou city, Henan , China
- Email:
- Website: https://www.hnchengyi.com/
Published date: December 16, 2020
- Business Description: Henan Chengyi Equipment Science and Technology Co.,Ltd was founded in 2013 - Our company is a manufacturer and supplier of lab equipment.
Our Equipment range include: Tube Furnace, Muffle Furnace, CVD System,PECVD equipment,Plasma Cleaner,Hydraulic press,Lab grinding polishing equipment, lab ball mill etc.
Our product are widely sold to America, UAE, European, South Africa etc.
With Own R&D team and factory,we not only can supply standard lab equipment, also,we can do customized as request.
We sincerely welcome worldwide friend come to visit us.
