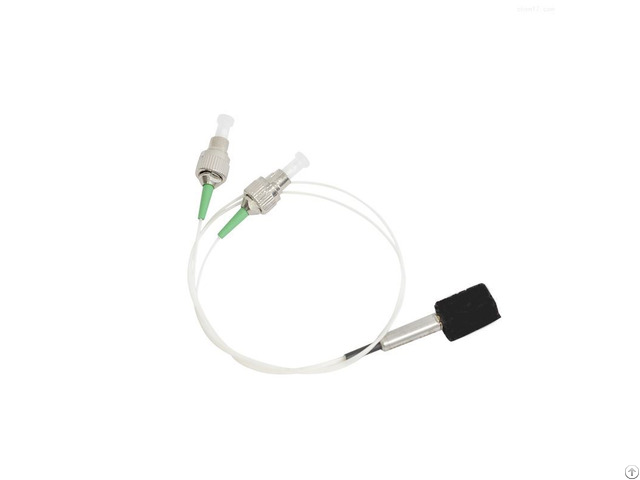

Mems Optical Switch 1x2 - China
price: 500.00 Dollar US$
MEMS optical switch 1XN are based on microelectromechanical systems technology.
By rotating the mirror of the MEMS chip, channel selection is allowed between one input fiber and N output fibers.
This switch is bidirectional and can also be used as an Nx1 selector switch.
It has the characteristics of small size, high reliability, and long life.
1 - Features ●Low Insertion Loss & Low PDL ●Low Power Consumption ●High switching speed ●Insensitive to Shock and Vibration ●High Reliability and Stability 2 - Application ●Fiber communication System ●Optical component testing ●Fiber sensing System ●Channel Monitor ●Matrix Optical Switch Technical Parameter Parameter unit Parameter values
Working wavelength nm 1260-1650
central wavelength nm 1310 or1550
Insertion loss dB ≤1.0(typical：0.8)
WDL dB ≤0.3
TDL dB ≤0.3
PDL dB ≤0.15
Return Loss dB ≥50
Crosstalk dB ≥50
Repeatability dB ±0.05
Switching Time ms ≤10
Lifetime times ≥10 billion
Operating Voltage V 5
Working current mw ≤500
Operating Temperature ℃ -20~+70
Storage Temperature ℃ -40~+85
Dimension mm 34x24x11
The losses in all the above specifications do not include the losses of the connectors and do not include the losses in special environments.
Company Contact:
- Phone: 8607713121055
- Address: Room 3-3, No. 17 MingYang Fifth Road, MingYang Industrial Area, Wuxu Town, Nanning, China
- Email:
- Website: https://www.xhphotoelectric.com
Published date: January 29, 2024
- Business Description: Optical Switch, OLP, optical-power signal acquisition equipment, VOA, stable optical sources, wavelength division multiplexers, circulators, optical fiber collimators, optical fiber jumpers, optical cable monitoring systems, distributed optical fiber temperature measurement systems (DTS),FBG sensors optical fiber grating sensors and other optical communication products.
