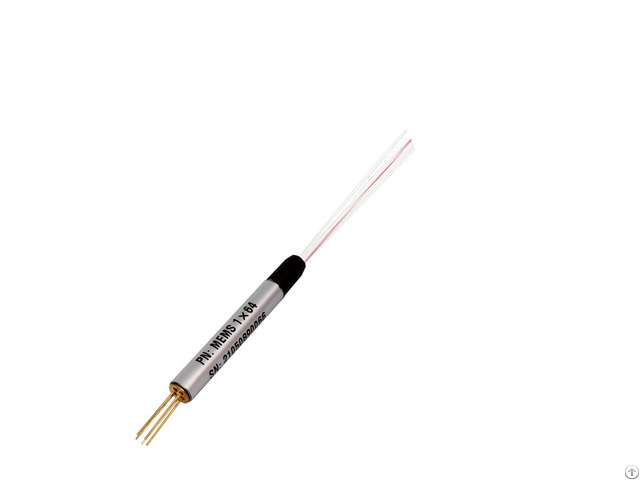

1xn Mems Optical Switch - China
price: 100.00 Dollar US$
Features Compact Size
Fast Switch Speed
Low Insertion Loss & PDL
Wide Operating Wavelength Range
High Reliability & Stability Applications Network Monitor System
Remote Fiber Testing System
Module & System Integration
Instrumentation
SPECIFICATIONS Single Mode Parameters Unit XH-MOSW 1×N (N≤64)
Working Wavelength nm O band: 1290~1330 C band: 1530~1570 L band: 1570~1610 L+ band: 1625~1650 Testing Wavelength nm 1310/1550/1625/1650
Insertion Loss dB 1×2 1×4 1×8 1×16 1×24 1×32 1×48 1×64
@CWL Single-band 0.6 0.8 1.0 1.3 1.5
@CWL Dual-band 0.8 1.0 1.2 1.5 1.7 WDL dB ≤0.3 TDL dB ≤0.4 (2≤N≤16), ≤0.6 (17≤N≤64) PDL dB ≤0.2 Return Loss dB ≥50 Crosstalk dB ≥50 (2≤N≤32), ≥45 (33≤N≤64) Repeatability dB ≤±0.05 Switching Time ms ≤8 Durability times ≥109 Operating Voltage V 60 Switching Mode Non-Latching Input Optical Power mW ≤500 Operating Temp.
°C -20 ~ +85 Storage Temp.
°C -40 ~ +85 Operating humidity % 5 ~ 95 Dimension mm Φ5.5×42(±0.1) (2≤N≤16)
Φ6.0×47(±0.1) (17≤N≤64)
1 - Within operating temperature and all SOP.
2 - Excluding connector.
3 - WDL is measured in a ±20nm range at 23°C。
Company Contact:
- Phone: 8607713121055
- Address: Room 3-3, No. 17 MingYang Fifth Road, MingYang Industrial Area, Wuxu Town, Nanning, China
- Email:
- Website: https://www.xhphotoelectric.com
Published date: January 29, 2024
- Business Description: Optical Switch, OLP, optical-power signal acquisition equipment, VOA, stable optical sources, wavelength division multiplexers, circulators, optical fiber collimators, optical fiber jumpers, optical cable monitoring systems, distributed optical fiber temperature measurement systems (DTS),FBG sensors optical fiber grating sensors and other optical communication products.
