D2 2 Optical Switch - China

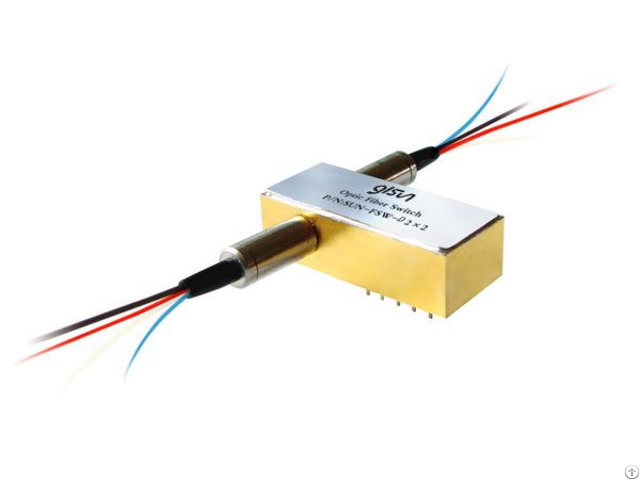

SUN-FSW-D2x2 Optical Switch, which is famous for its high performance, low insertion loss and compact dimension: (L)28.5×(W)12.6×(H)8.7m m (SM); (L)27.0x(W)12.6x(H)8.2mm (MM) It is an ideal component for OADM, OXC system monitoring and protection.

D2×2 Optical Switch - Features

Low Insertion Loss

Wide Wavelength Range

Low Crosstalk

High Stability, High Reliability

Epoxy-free on Optical Path

Latching and Non-latching

D2×2 Optical Switch - Applications

R&D in Laboratory

System Monitoring

OADM

MAN (Metropolitan Area Network)

D2×2 Optical Switch - SM Specifications

Model No: SUN-FSW-D2×2-S

Wavelength Range: 1260 ~ 1650nm

Test Wavelength: 1310 / 1550nm

Insertion Loss 1, 2 : Typ: 1.0 Max: 1.5

Return Loss 1, 2≥ 50dB

Crosstalk 1 ≥ 55dB

PDL≤0.05dB

WDL≤0.25dB

Repeatability≤±0.02 dB

Operating Voltage: 3V or 5V

Durability ≥ 10 Million Cycles

Switching Time ≤8ms

Optical Power ≤500mW

Operating Temperature: -5 ~ +70℃

Storage Temperature: -40 ~ +85℃

Relative Humidity: 5 ~ 95%

Weight: 16g

Dimension: (L)28.5×(W)12.6×(H)8.7 ±0.2

Note:

1 Within operating temperature and SOP.

2 Excluding Connectors.

D2×2 Optical Switch - MM Specifications

Model No: SUN-FSW-D2×2-M

Wavelength Range: 850±40 / 1300±40; 1470 ~ 1650

Test Wavelength: 850 / 1300; 1550

Insertion Loss 1, 2 : Typ: 1.0 Max: 1.5

Return Loss 1, 2≥ 30 dB

Crosstalk 1 ≥ 35dB

PDL ≤0.05dB

WDL≤0.25dB

Repeatability ≤±0.02 dB

Operating Voltage: 3V or 5V

Durability ≥ 10 Million Cycles

Switching Time ≤8 ms

Optical Power ≤500 mW

Operating Temperature: -5 ~ +70℃

Storage Temperature: -40 ~ +85℃

Relative Humidity : 5 ~ 95 %

Weight: 14g

Dimension: (L)27.0×(W)12.6×(H)8.2 ±0.2

Note:

1 Within operating temperature and SOP.

2 Excluding Connectors.
