D1x2 Optical Switch - China

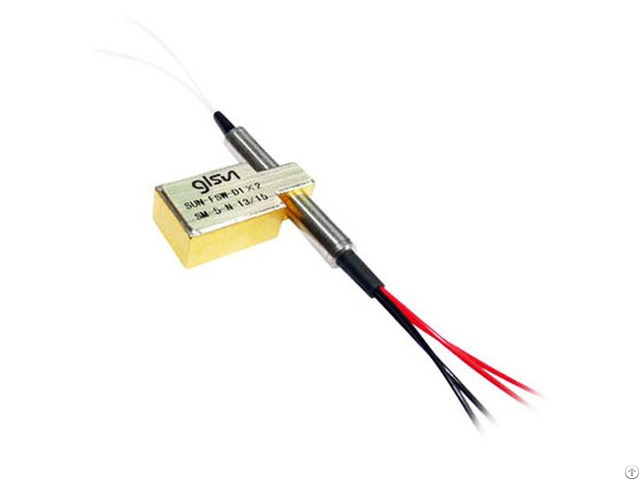

SUN-FSW-D1x2 Optical Switch, which is famous for its high performance, low insertion loss and compact dimension: (L)27.0x(W)12.6x(H)8.2mm.

It is an ideal component for OADM, OXC system monitoring and protection.

With compact package, it can be easy to integrate into a high density optical communication system.

D1×2 Optical Switch - Features

Low Insertion Loss

Wide Wavelength Range

Low Crosstalk

High Stability, High Reliability

Epoxy-free on Optical Path

Latching and Non-latching

D1×2 Optical Switch - Applications

R&D in Laboratory

System Monitoring

OADM

MAN (Metropolitan Area Network)

D1×2 Optical Switch - Specifications

Model No: SUN-FSW-D1×2

Wavelength Range: 850±40 / 1300±40; 1260 ~ 1650

Test Wavelength: 850 / 1300 ; 1310 / 1550

Insertion Loss 1,2 : Typ: 1.0 Max: 1.5

Return Loss 1,2: MM ≥ 30 SM ≥ 50

Crosstalk 1 : MM ≥ 35 SM ≥ 55

PDL ≤0.05dB

WDL ≤0.25dB

Repeatability ≤±0.02dB

Operating Voltage: 3V or 5V

Durability ≥ 10 Million Cycles

Switching Time ≤8ms

Optical Power ≤500 mW

Operating Temperature : -20 ~ +70℃

Storage Temperature: -40 ~ +85℃

Relative Humidity: 5 ~ 95%

Weight: 14g

Dimension: (L)27.0×(W)12.6×(H)8.2 ±0.2

Note:

1 Within operating temperature and SOP.

2 Excluding Connectors.
