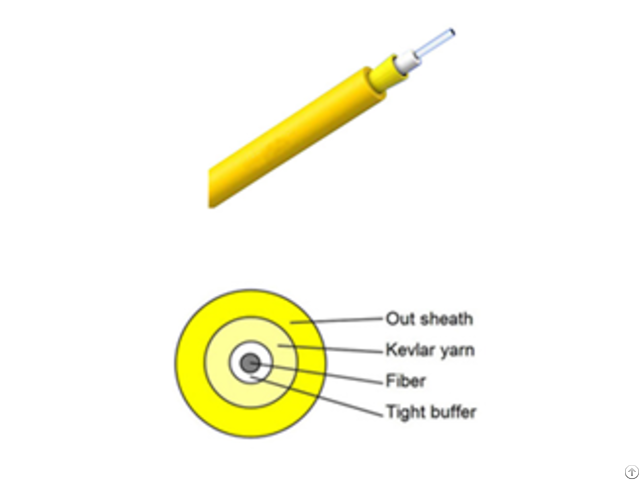

Simplex Fiber Cable - China
price: check with company for price
Feature:
High tensile strength due to aramid strength member;
Good flame retardant properties;
Stable temperature performance;
Excellent stripability with tight buffered fiber;
High uniformity of geometrical characteristics.
Application:
Indoor riser level and plenum level cabling;
Fiber jumper or pigtail;
Interconnections between instruments and communication Equipment
Technical Parameters: Fiber Cable Characteristics:
Outer diameter(mm) 1.6 1.8 2.0 2.4 3.0
Nominal Weight(kg/km) 2.8 3.0 4.3 5.0 7.0
Crush Resistance
Long/Short term
(N/100mm) 100
500 100
500 100
500 100
500 100
500
Tensile Strength(N)
Long/Short term 80 80 100 100 150
40 40 60 60 80
Min.
Bending
Radius(mm) Dynamic 20D
static 10D
Temperature Range -20℃-70℃
Order Information:
Fiber Core Fiber Type Count Cable OD reinforced Fiber Jacket Jacked Color
1=G652D
2=G657A1
3=G657A2
4=50/125
5=62.5/125
6=OM3
7=OM4
X=other S=Simplex
Z=Zipcord Duplex
Y=Round Duplex
F=Flat Duplex
B=Breakout
D=Distribution
R=Ribbon
A=Armored
W=Waterproof
X=other 001=1 core
002=2 cores
003=3 cores
024=24 cores
XXX=other 01= 0.9mm
02=2.0mm
03=3.0mm
04=2.9*6.0mm
05=1.9*3.1mm
06=4.2*7.6mm
07=9.0mm
08=11.2mm
09=4.0*7.0mm
XX=other 1=Kevlar
2=FRP
3=Armored steel tape
4=Steel wire
5= Armored steel tape & Steel wire
PR=PVC-OFNR
PP=PVC-OFNP
LH=LSZH
PE=PE
PU=TPU
LN=Nylon
HT=Hytrel
xx=other 01=Blue 02=Orange
03=Green 04=Brown
05=Slate 06=White
07=Red 08=Black
09=Yellow 10=Violet
11=Rose 12=Aqua
13=12 Color
XX=Other
Company Contact:
- Posted By: ShenZhen Opelink Technology Co., Ltd
- Phone: +8613434796118
- Address: F4,No.17,Qingnian Road,Shiyan Street,Baoan Distric, ShenZhen , GuangDong , China
- Email:
- Website: https://www.opelink.com
Published date: May 19, 2016
- Business Description: SHENZHEN OPELINK TECHNOLOGY CO., Ltd is a leading worldwide manufacturer and supplier of passive and active fiber optic components and equipment.
Our main products include: Passive Series such as Optical Splitter, WDM(CWDM, DWDM, OADM, AWG), patch cord, Fiber Cable, Optical Circulator, Optical Isolator.
Active Series includes SFP Module, Optical Transmitter and Receiver, Optical Switch, Optical amplifier, etc.
And there is also Optical Passive Equipment, Fixture, Fiber Tool Series and Grinding Material Series products.
Our companny adopts advanced manufacturing technology, high precision production and inspection equipment.
Meanwhile, we strictly execute Bellcore, UL, ROHS, 5S and ISO9001-2008 - Our products have been exported to many foreign countries like France, USA, Brazil, Korea, Russia etc.
Adhering to the services of "Quality comes first, Service-Oriented", our company will keep on providing finest products as well as timely and satisfactory after-sale service.
