Shinho High Quality Laser Source X 5002 - China

price: 80.00 Dollar US$

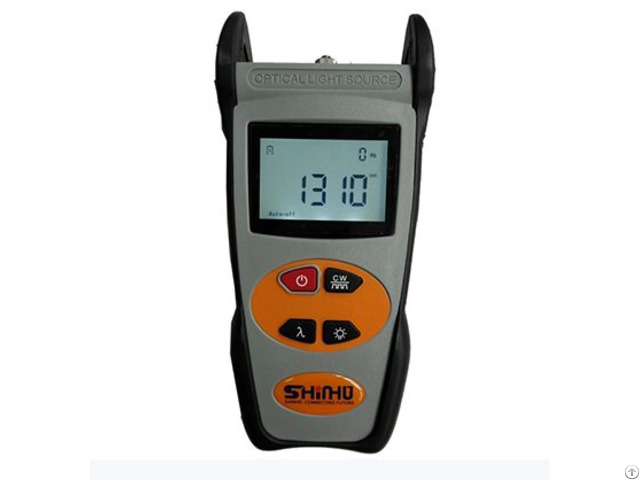

Shinho High Quality Laser Source X 5002

Products Photos Catalog Shinho Laser 5002 Photos Catalog

Features *Tone generation, 270HZ, 1KHZ, 2KHZ;

*Output power valueis shown on LCD display;

*Intelligent back light control (light intensity can be adjusted properly according to ambient light, which greatly reduced power consumption);

*AA alkaline for power supply;

*Low battery indication.

X-5002 Laser Source Data Sheet Operating wavelength(nm) 1310/1550 (others specify on requests, Max wavelength is 5)

Applicable fiber SM, MM

Laser type FP-LD(others specify on requests)

Maximum Output Power(dBm) -7(can be adjustable, others specify)

Stability(dB, 15min, 20ºC) ±0.1

Stability(dB, 30min, 20ºC) ±0.05

Modulation(Hz) CW, 270, 1K, 2K

Fiber Port FC/PC or FC, SC, ST interchangeable

Alkaline Battery 3XAA, 1.5V

Battery Operating time(h) 45

Operation Temperature(ºC) -10~+60

Storage Temperature(ºC) -25~+70

Outline size(mm) 200 X90 X50

Weight(g) 285


Company Contact:


  • Phone: +8613681973689

  • Address: No.525 Chengyin Road, Baoshan District, Shanghai, China 200444, Shanghai , Shanghai , China

  • Email: Email


Published date: March 26, 2020

  • Business Description: We are a leader of fiber fusion splicers in China, also a high-tech company focusing on the research and development of fiber optical equipment and solutions.

    we are devoted to supplying high quality products and reliable services to customers all over the world.

    We could rank top 3 among all Chinese fusion splicer manufacturers now.

    Moreover we provide professional after sale service to our customers.

    Currently we have developed 11 models fusion splicers , and get good market feedback.
