Fiber Optical Power Meter X 5001 Otdr - China

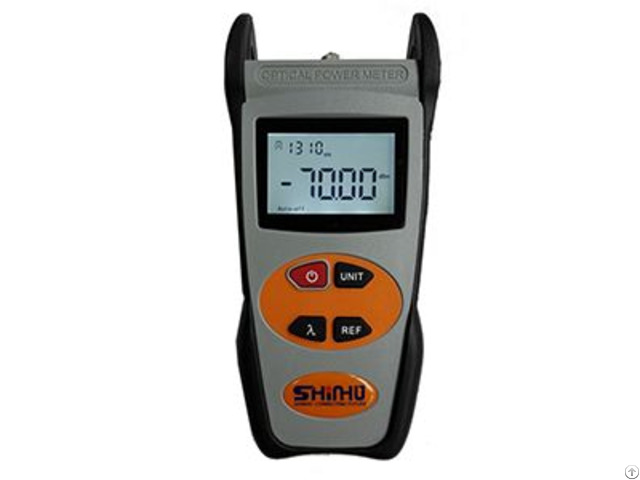

Optical Power Meter X-5001 Optical power meter X-5001 is designed to meet the high demand.

It intergrades the handheld optical power meter and the intelligent optical power meter in one unit.

It can be used for the absolute power measurement and relative measurement of the link loss in dB.

Its compact size, friendly operation interface, broad power measurement range, high precision and brand-new user automatic calibration function and high performance in application makes it an ideal tool for optical fiber network.

Features Reference power level storage (Ref Setting)

Power measurements in dBm or mw and insertion loss in dB;

10 minutes Auto-off function can be activated or deactivated.

Low battery consumption, more than 240 hours continual operation time;

Comfortable LCD display and optional backlight LCD display supports night operation;

Applications: Maintenance in Telecom/ Maintenance in CATV/ Fiber Optic Lab Testing/ Other Fiber Optic Measurements

Specifications Wavelength(nm) 800~1700nm

Detector InGaAs

Measurement Range (dBm) -70~+6/-50~+26

Uncertainty ±5%

Calibrated Wavelength(nm) 850, 1300, 1310, 1490, 1550, 1610, 1625

Resolution(dB) 0.01

Optical Connector FC(interchangeable SC, ST) / as well as 2.5mm universal

Power Supply Alkaline Battery(3 AA 1.5V batteries)

Battery Operating Time 240 h with 1.5V Battery(3)

Operating Temperature(ºC) -10 ~ +60

Storage Temperature(ºC) -25 ~ +70

Relative Humidity 0 to 95% (non-condensing)

Dimension(mm) 200 X90 X50

Weight(g) 285 Standard Accessories NO.

ITEM

1 Power meter

2 Manual

3 Protective Holster

4 1.5V AA battery *3 pcs

5 Cotton swabs
