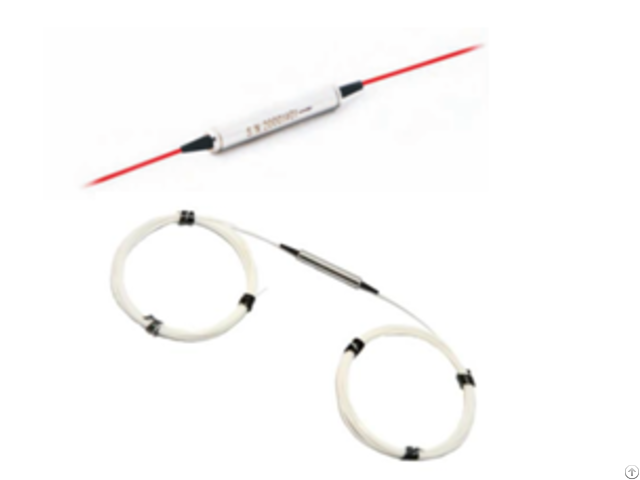

Polarization Insensitive Single Dual Stage Optical Isolator - China

Features:

Low Insertion Loss

High Isolation

High Return Loss

Application:

Fiber Laser Line Monitoring

Instrumentation

Fiber Amplifier

Lab Research

Optical Specifications:

Parameter Specification

Single Stage Dual Stage

Operating Wavelength（nm） 1310 or 1550

Peak Isolation(Typ.

)(dB) 42 58

Isolation(Min.

)(dB) 32 46

Insertion Loss(Typ.

)(dB) 0.3 0.4

Insertion Loss (Max.

)(dB) 0.5 0.6

Return Loss(In/Out)(dB) ≥65/60 ≥65/60

PDL(dB) ≤0.05 ≤0.05

PMD(dB) ≤0.2 ≤0.1

Wavelength Range（nm） ±15 ±30

Maximum Power( mW) 300

Operating Temperature(℃) -20 ～ + 70

Storage Temperature(℃) -40 ～ +85



Order Information:

Type Operating Wavelength Fiber type package cable type fiber length connector

（Input-Output）

S= Single stage

D= Dual stage 13=1310nm

15=1550nm

14=1480nm

LB= L Band 1=G652D

2=G657A1 C=5.5X30mm

Steel Tube

B=3.0x25mm

Steel Tube

D=90X20X9.5mm Plastic Box B=250um Bare Fiber

L=900um Loose Tube

S=2.0mm

R=3.0mm 10=1.0m

15=1.5m

20=2.0m 00=None

FA=FC/APC

FU=FC/UPC

SA=SC/APC

SU=SC/UPC

ST=ST/UPC

LU=LC/UPC
