M2m 3g 4g Lte Wifi Router Supports Vpn Client And Sever Pptp L2tp Ipsec - China

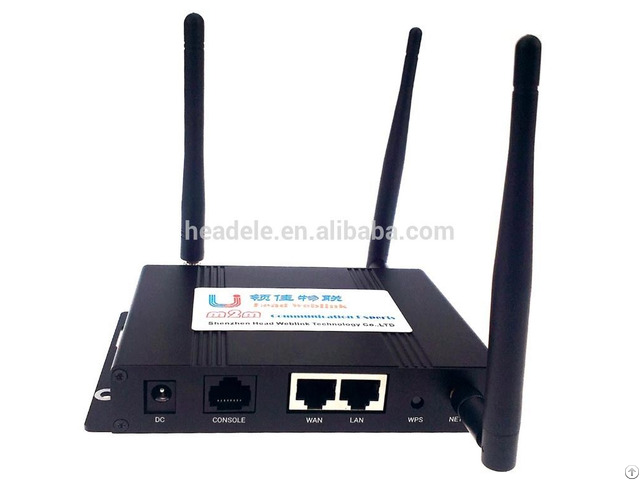

M2M 3G 4G LTE WIFI router supports VPN client &Sever(PPTP, L2TP, VPN, IPSEC )

Highlight :

It can provide UART(RS232) or console communication port

We can provide customized frequency bands.

Powerful Function

Supports multiple WAN connection mode, including static IP, DHCP, L2TP, PPTP, PPPOE, 3G/LTE

Supports VPN client &Sever(PPTP, L2TP, VPN, IPSEC )

Supports remote management, SYSLOG, SNMP, TELNET, SSHD, HTTPS and so on

Supports local and remote online update, import and export configuration file

Can clone VLAN, MAC address, PPPoE server

Supports WiFi 802.11b/g/n, WiFi AP and AP client

Supports WiFi encryption methods like WEP, WPA, WPA2 and so on, supports RADIUS authentication, MAC address fi3Gring functions

Supports APN/VPDN DHCP server and DHCP client, DHCP binding MAC address, DDNS, firewall and NAT DMZ host, QoS, traffic statistics, real-time display data transmission rate functions and so on

Supports TCP/IP, UDP, FTP, HTTP network protocol Support SPI firewall, VPN through, access control, URL fi3Gring

Frequency band

* LTE 4G router.

1).

HDRM1004GT.

•Four-Band TDD-LTE B38/B40

• Tri-Band FDD-LTE B1/B3/B7/B8 /B20

• Dual-Band TD-SCDMA B34/B39

• Dual-Band UMTS/HSDPA/HSPA+ B1/B5

•Tri-Band GSM/GPRS/EDGE850/900/1800 MHz

2).

HDRM1004GF

Lartin America version.

FDD- LTE.

B2, B4, B5, B7, B17

TDD- LTE.

B38

WCDMA/UMTS.

2100/1900/1700/850(900)MH z

GSM/GPRS.

850/900/1800/1900MHz.

EU_ASIA version.

FDD- LTE.

B1, B3, B7, B8, B20

TDD- LTE.

B40, B38

WCDMA/UMTS: 2100/1900/1 700/850(900)MHzGSM/GPRS.

850/900/1800/1900MHz

Version JC

LTE FDD.

B1, B3, B8, B18, B19

LTE TDD.

B41

UMTS.

B1, B6, B8

GSM.

900&1800MHz

LTE FDD.

B1, B8

UMTS.

B1, B8

GSM.

900/1800MHz

* 3G router.

1).

HDRM1003GW

WCDMA.

850/1900MHz & 900/2100MHz

GSM.

850/900/1800/1900MHz

2).

HDRM1003GE

EVDO 800MHz & 800/1900MHz

Data rates

* 4G LTE router.

1).

HDRM1004GT.



• TDD-LTE/FDD-LTE

- Uplink up to 50Mbps, - Downlink up to 100Mbps

• TD-HSDPA/HSUPA

- Uplink up to 2.2 Mbps, - Downlink up to 2.8 Mbps

• TD-SCDMA

- Uplink up to 128Kbps, - Downlink up to 384Kbps

• HSPA+

• EDGE Class:

- Max.

236.8Kbps(DL&UL)

• GPRS

- Max: 85.6Kbps(DL&UL), • CSD

- GSM data rate 14.4Kbps

- WCDMA datarate57.6Kbps

- WCDMA 64kbps CSD for Video call

2).

HDRM1004GF



• TDD-LTE/FDD-LTE

- Uplink up to 50Mbps, - Downlink up to 100Mbps

• HSPA+

- Uplink up to 11 Mbps, - Downlink up to 42 Mbps

• UMTS

- Uplink/Downlink up to 384Kbps

• EDGE Class:

- Max.

236.8Kbps(DL), Max.

236.8Kbps(UL)

• GPRS

- Max.

85.6Kbps(DL), Max.

85.6Kbps(UL)

• CSD

- GSM datarate : 14.4Kbps

- WCDMA data rate 57.6Kbps

* 3G router.

1).

HDRM1003GW

WCDMA.

DL 14.4Mbps, UL 5.76Mbps

2).

HDRM1003GE

EVDO.

DL 3.1Mbps, UL 1.8Mbps

Power supply

Input.

100V~240V, 50Hz~60Hz

Output.

5V, 1000mA

Conditions

Operating Temperature .

-30℃ -- +70℃

Operating humidity.

5%--95%
