Field Assembly Optical Connector - China

Descriptions

Field Assembly Optical Connector (FAOC), or Fast connector is a perfect solution for filed working and FTTH connection.

It is widely used for where need to quick connection, providing a quick assembly and stable performance.

When engineers work in field for installation, maintenance, repair of optical fiber, or FTTH indoor terminate, they can use it easily because it has no epoxy, no polishing.

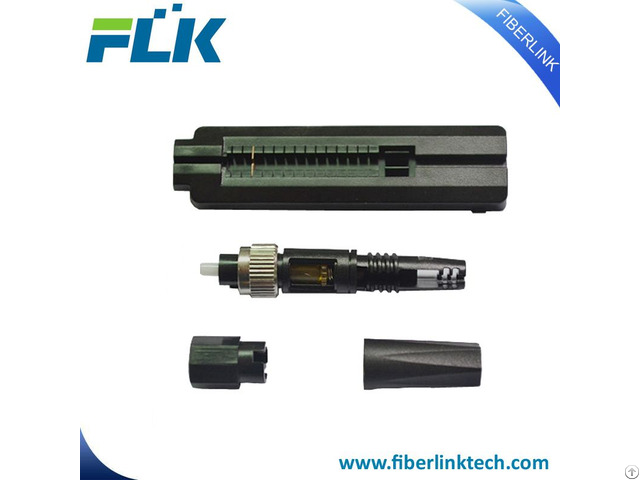

FC/UPC SM Fast Connector is designed inside ferrule with fiber stuff and pre-polishing in the factory.

It provides a perfect ferrule endface quality.

This has great help to protect user's equipment interface and improves the connector loss.

Features

One-piece connector or attenuator

Inside ferrule with fiber stuff and pre-polishing

Field installable, quich connection, easy for operation

No epoxy, no polishing, no adhesive, no electricity required

High performance and high reliability

Simply and easy fixed fiber or cable

Cable Tensile complied with Telcordia GR-326-CORE

Applications Optical Distribution Frame

Optical Network Equipments

FTTH, CATV Specifications

ITEM Technical Parameters

Applicable for Drop cable.

Indoor cable

Optical fiber diameter 125μm ( 657A & 657B )

Tight buffer diameter 900μm

Fiber mode Single mode

Polishing Type UPC or APC

Operation time About 120s(no fiber cut)

Insert loss ≤ 0.3dB(1310nm & 1550nm)

Return loss ≥50dB

Fastening strength of naked fiber >5 N

Fastening strength of naked fiber holder >10 N

Tensile strength >50 N

Using temperature -40~+75ºC

On-line tensile strength (20 N) △ IL ≤ 0.5dB △ RL ≤ 5dB

Mechanical durability (500 times) △ IL ≤ 0.5dB △ RL ≤ 5dB

Drop-off test (drop-off height 4m, once per direction, totally 3 times) △ IL ≤ 0.5dB △ RL ≤ 5dB
