Inline Fixed Optical Attenuator - China

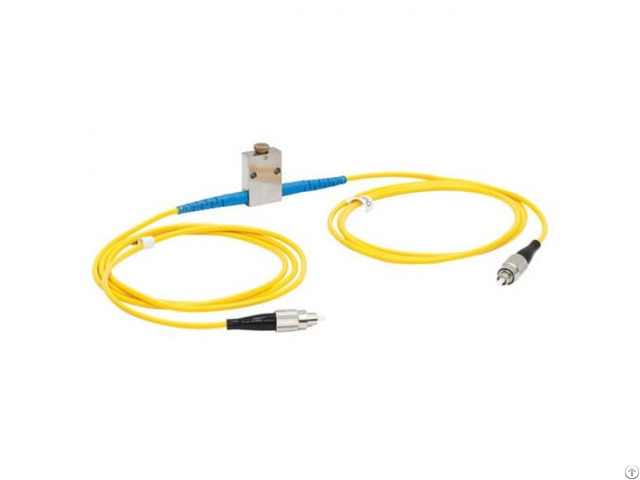

Fiberlink's Inline Fixed Optical Attenuator is a compact passive fiber optical component that provides accurate attenuation.

The Fixed optical attenuator is packaged with fiber pigtails so that it can be easily connected into the optical fiber systems.

Single mode fiber based attenuators with single window (1310nm or 1550nm) or dual window (1310&1550nm) are available.

Description

Parameter Value

Operating Wavelength 1310/1550nm

Bandwidth 50nm

Attenuation Range 1dB, 3dB, 5 dB, 7dB 10 dB, 15dB 20 dB etc.

Attenuation Tolerance 10% Attenuate Value

Return Loss >50dB

PDL <0.1dB

Pigtail Type 250nm bare fiber 900um/2.0mm/3.0mm Loose tube

Package size Φ3×40 Φ4×75

Operating Temperature -20 ~+75℃

Storage Temperature -40 ~+85℃ Feature

Definable attenuation from 1db to 20dB

High precision attenuation value

Wide bandwidth

High return loss and low PDL

Compact size and small package
