    • Alignsat 13m Earth Station Antenna - China

    price: 150000.00 Dollar US$

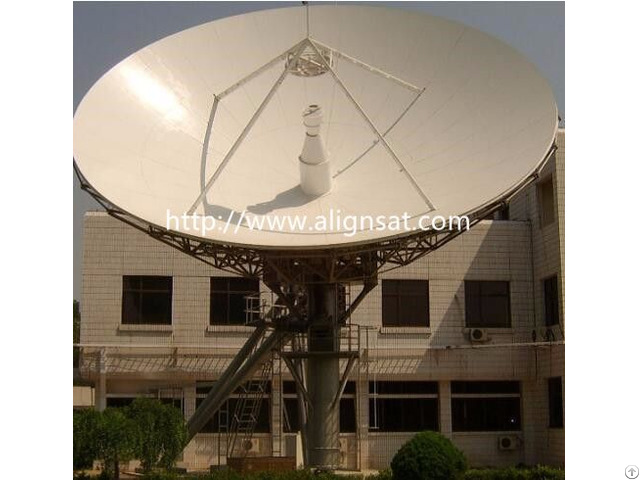

    Alignsat 13m Earth Station Antenna

    Products Photos Catalog Alignsat 13m Earth Photos Catalog

    Type AT130C AT130K

    Operating Frequency, GHz C band Ku band

    Rx 3.4~4.2 10.95~12.75

    Tx 5.85~6.425 13.75~14.5

    Gain, Mid-band, dBi 52.86 56.44 62.62 63.54

    Polarization Linear /circular Linear

    XPD(on Axis), dB 35 35 35 35

    XPD across 1dB Beam Width, dB 33 33 33 33

    Axial Ratio (Circular-Polarized) 2-PortFeed 0.5dB per port

    VSWR CP: 1.25: 1, LP: 1.3: 1 LP: 1.3: 1

    Antenna Noise Temperature 2/4 Port 2/4 Port

    10° Elevation 35K/42K 60K/66K

    30° Elevation 26K/36K 50K/56K

    50° Elevation 24K/33K 46K/52K

    -3 dB Beam Width, Mid-band 0.30° 020° 0.30° 0.20°

    Tx.

    Power Capability, KW 5 2

    Feed Interface CPR—229F CPR—159G/13 WR-75 WR-75

    Feed Insertion Loss, dB 0.2/0.25 0.2/0.25 0.25/0.35 0.25/0.4

    Isolation, Tx to Rx, dB 85 dB 85 dB

    Tx/Tx, Rx /Rx, Linear, dB CP: 20 dB, LP: 30dB LP: 30dB

    Tx/Tx, Rx/Rx, Circular, dB CP: 20 dB, LP: 30dB LP: 30dB

    Radiation Pattern : First Side lobe ≤-14dB, Meet ITU-RS.

    580-5 specifications

    Antenna Diameter 13m

    Antenna Type Cassegrain

    Surface Accuracy(RMS) ≤0.4mm

    Azimuth ±85°/0°~360°(Continuo us)

    Elevation 0°~90°(Continuous)

    Polarization 180°(Continuous)

    Drive Mode Manual or Motorized

    Antenna reflector Material High-diffusing white paint for Aluminum reflector

    Finish of steel parts Galvanized

    Operational Wind 72km/h gusting to 126km/h

    Survival Wind 200km/h

    Temperature -40°~+60°

    Relative Humidity 100%

    Solar Radiation 1135Kcal/h/m²

    Seismic(Survival) 0.3g(H), 0.15g(V)

    Ice Loading13mm Operational; 30mm Survival


    Company Contact:


    • Phone: +862981114837

    • Address: 16TH Floor, Unit 1, Building 3, Garden Plaza, 11# Tang Yan South Road, High-tech Development Zone, Xian , Shaanxi , China

    • Email: Email


    Published date: December 5, 2016

    • Business Description: Alignsat, a leading manufacturer of VSAT antenna, Earth station antenna, TVRO antenna, Flyaway antenna, Maritime antenna, Vehicle mounted antenna, Antenna controller, Antenna tracking receiver, Satcom on the move etc.

      with installation and commissioning test, training services.

      Also customized products are welcomed.
