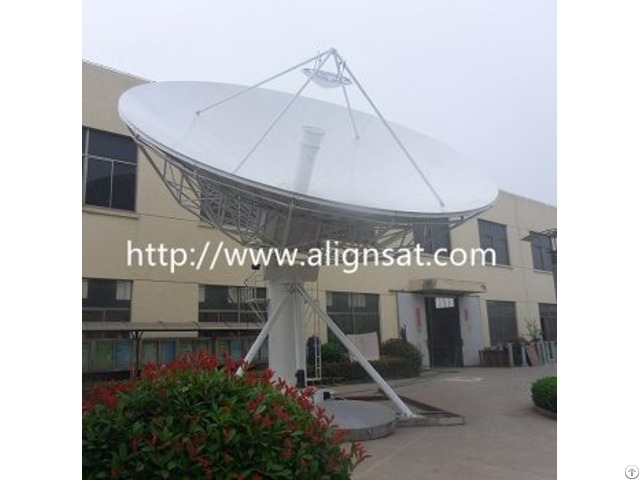

Alignsat 9m Earth Station Antenna - China

Operating Frequency, GHz C band Ku band

Rx 3.625~4.2 10.95~12.75

Tx 5.85~6.425 13.75~14.5

Gain, Mid-band, dBi 49.7 53.4 59.4 60.4

Polarization Linear/circular Linear

XPD across 1dB Beam Width, dB 33 33 33 33

Axial Ratio(Circular-Polarized) 2-Port Feed 1.30 1.06 1.09 1.06

VSWR 1.25 1.25 1.25 1.25

Antenna Noise Temperature 2/4 Port Feed 2/4 Port Feed

10°Elevation 35K/50K 60K/90K

30°Elevation 27K/39K 50K/76K

50°Elevation 24K/34K 44K/64K

TypicalG/T(EL>10°, 2-port) 32.0dB/K 37.8dB/K

(30°LNA) (70°LNA)

-3dB Beam Width, Mid-band 0.54º 0.36º 0.19º 0.16º

Tx.

Power Capability, KW 5 5

Feed Interface CPR—229G CPR—229G WR-75 WR-75

Feed Insertion Loss, dB 0.2/0.3 0.2/0.25 0.2/0.3 0.2/0.25

Isolation, Tx to Rx, dB 90 85

Tx/Tx, Rx /Rx, Linear, dB 30 30

Tx/Tx, Rx /Rx, Circular, dB 20 20

Side lobe CCIR580-4

Antenna Diameter 9m

Antenna Type Cassegrain

Surface Accuracy(RMS) ≤0.4mm

Azimuth ±85°(2 sections)

Elevation 0°~90°(Continuous)

Polarization ±90°(Continuous)

Drive Mode Manual or Motorized

Antenna reflector Material Aluminum Alloy

Finish of steel parts Hot dipped Zinc

Operational Wind 72km/h gusting to 97km/h

Survival Wind 198km/h

Temperature -40°~+60°

Relative Humidity 100%

Solar Radiation 1135Kcal/h/m²

Seismic(Survival) 0.3g(H), 0.15g(V)

Ice Loading 13mm Operational; 25mm Survival
