Three Way Manual Diaphragm Valve Tp316l Stainless Steel Material For Beverage - China

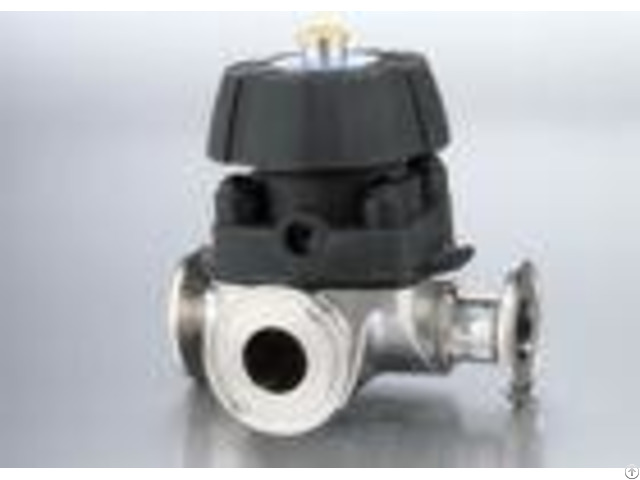

AISI 316L Stainless Steel Manual Type Sanitary 3-Way Diaphragm Valve with Clamp Ends Descriptions: This sanitary diaphragm valve made of stainless steel either 316L, Surface finishing 180 Grit ID/ 150 Grit OD, combined with an envelope diaphragm PTFE filled with EPDM or VITON upon request, clamp ends.

It has a maximum operating pressure rating 140 (psi depending on the valve size) at 70 degrees F ambient temperature.

It is suitable for use in the food, beverage, biotech, pharmaceutical, and other hygienic applications.

When purchasing fittings, consider the application, as this will affect material type, shape, size, pressure drop and required durability.

Features: Valve body: SS316L, Body is made from investment casting ASTM 351 - Forged body can be supplied on request.

Size : 3/4 to 4 DN15-DN100 Also available in Mini type: DN6, DN8, DN10, Membrane: PTFE+EPDM, SILICONE, EPDM.

FDA certificated Operation: Manual Type, Pneumatic actuated Connections: Clamped, Butt-weld, female, male Working temp: EPDM(-40 ~120 ) PTFE(-25 ~180) Working pressure: Max 10 Bar Surface: internal mirror polished Ra<0.4m External-Sand Blasted Spezilla supply other ranges of hygienic diaphragm valves, such as three way diaphragm valve, U type diaphragm valve, T type diaphragm valve, pneumatic diaphragm valves, two way clamped diaphragm valve.

Sizes Range: - - - - DN | Size | A | B | C | D | E | L | H | I | DN15 | 3/4" | 108 | 66 | 18 | 15 | 65 | 76.5/85.5 | 25 | 10 | DN20 | | 118 | 75 | 19 | 22 | 65 | 76.5/85.5 | 25 | 10 | DN25 | 1" | 127 | 82 | 25 | 28 | 89 | 93/103.5 | 28 | 10 | DN32 | 1 1/4" | 146 | 98.5 | 31 | 34 | 109 | 107/124.5 | 36 | 11 | DN40 | 1 1/2" | 160 | 105.5 | 37 | 40 | 109 | 107/124.5 | 39 | 14 | DN50 | 2" | 190 | 123 | 49 | 52 | 139 | 129/151.5 | 46.5 | 12 | DN65 | 2 1/2" | 216 | 129.5 | 67 | 70 | 200 | 140/168 | 55 | 10 | - - - - - - - - 3A | Size | 3/4" | 1" | 1 1/4" | 1 1/2" | 2" | 2 1/2" | | C | 15.75 | 22.1 | 28.5 | 34.8 | 47.5 | 60.2 | | D | 19.05 | 25.4 | 31.8 | 38.1 | 50.8 | 63.5 | - - - - - - - - SMS/ISO | Size | 19 | 25 | 32 | 38 | 51 | 63 | | C | 16.05 | 22.4 | 28.8 | 35.1 | 47.8 | 59.5 | | D | 19.05 | 25.4 | 31.8 | 38.1 | 50.8 | 63.5 | - - - - Quality Assurance: 1 - Material Controlled & Machined Precisely.

2 - Easily welded 3 - Quickly fit up 4 - High corrosion resistant 5 - Long service life 6 - Safety Stock System.

7 - Well packaged 8 - Fast delivered 9 - Surface Finish: #180 Grit, #320 Grit Applications: Spezilla'sstainless steel sanitary valves are applicable to a wide range of manufacturing industries: 1 - Bio-Pharm 2 - Food 3 - Beverage 4 - Dairy
