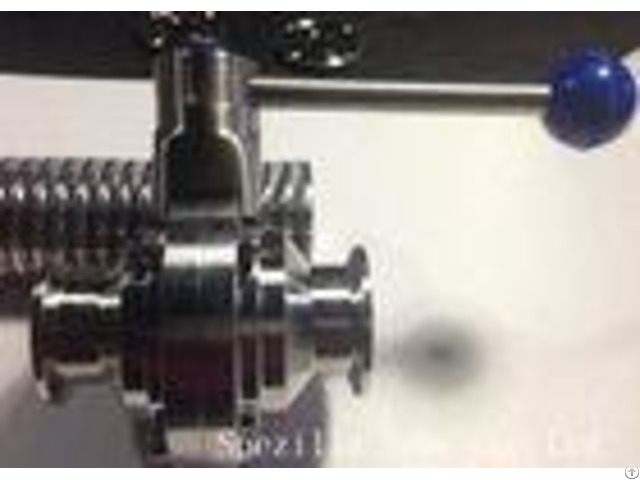

Plastic Handle Stainless Steel Sanitary Valves Tri Clamp Butterfly Valve - China

A270 Sanitary Valves And Fittings Stainless Steel Plastic Handle Tri Clamp Butterfly Valve Our Sanitary Fittings, Stainless Steel Fittings, Sanitary Valves, Sanitary Tubes, Stainless Clamp, Hygienic Fittings, Hygienic Valves include ferrules, clamps, sanitary clamps, tri clamps, tri clover clamps, hose clamp, pipe hangers, unions, elbow, bends, tee, cross, tube cap, reducer, ball valves, check valves, butterfly valves, sight glass, actuators, plug valves, divert valves, tank valves, filling valves, relief valves, sample valves, sample cock valves, upper valves, level valves, test valves, diaphragm valves, flanges, weld nut, pipe unions, gaskets, weld tube, clamp tube, weld fittings, clamp fittings, tube fittings, tri clamp fittings, ASME BPE tubes, ASME BPE Fittings, UltraPure Fittings and Biopharmaceutical Fittings.

All meet the exacting demands for safety, reliability, efficiency and hygiene for standard duty in the food, dairy, beverage, brewing, cosmetic, biotechnology, pharmaceutical, and personal care industries.

Plastic Handle Butterfly Valve Specifications: Alloy: T304 or T316L Sizes: 1.50", 2.00", 3.00" OD Seats: EPDM or Silicone Finish: Polish to a 32 Ra ID/OD Handle Interchanges to either side Field Serviceable 100% Hydraulic Pressure Tested Economical Price for all sizes from 1.5" -- 4" Material : Body : SS 304, SS 316 or SS 316L (cast or forged) Handle : * SS3 04 Solid bar with phenolic knob for 4 position * Nylon 6 + reinforce glass fiber handle with SS 304 gripper bar *or all SS 304 handle for 12 position Seat : Silicone, EPDM and Viton is available Operation : Available for pull handle 4 position and gripper handle 12 position Range of control systems : Available for air actuators, micro switches, solenoids.

etc Size : Usually 1" - 4", any size is demandable Fitting ends : BS, DIN, SMS, A270, Weld ends, Male ends and Clamp ends Working pressure : * -0.9 to 10 Bar for cast body * -0.9 to 20 Bar for forged body Working temperature : -10oC up to 150oC Disk head size : * 9.4 x 9.4mm available for cast & forged body * 8 x 12mm, 12 x 12mm available for forged body Safety : 100% 6kgf/cm2 air or 25kgf/cm2 hydraulic and 300k times cycle test Actuator - - - - NO.

| PART NAME | MATERIAL | 1 | KNOB | PLASTIC | 2 | SHAFT-BAR | SS304 | 3 | SPRING | SS304 | 4 | HOLDER | SS304 | 5 | BODY | SS304, 316, 316L | 6 | DISC | SS304, 316, 316L | 7 | GASKET | SILICON, EPDM | 8 | BOLT | SS304 | - - - - Sanitary Butterfly Valves - - - - A | B | C | D | F | Size | Weld | Clamp | Male | W/C/M | W/C/M | 1" | 47 | 80 | 122.24 | 73 | 22 | 223 | 1.5" | 47 | 80 | 134.94 | 73 | 22 | 238 | 2" | 52 | 80 | 163.51 | 92 | 22 | 245 | 2.5" | 54 | 80 | 174.63 | 111 | 22 | 247 | 3" | 62 | 90 | 195.26 | 123 | 24 | 254 | 4" | 80 | 100 | 228.60 | 161.5 | 24 | 271 | - - - - Gripper Handle 12 Position Material : 1 - Nylon 6 + reinforce glass fiber handle with SS 304 gripper bar and notch plate.

2 - All SS 304 handle, gripper bar and notch plate.

Disc head size : 9.4 x 9.4mm, 12 x 8mm or 12 x 12mm available.

Feature : * Precision and beautiful design.

* Easy operation and safe lock.

* Easy to put your logo marks on.

Company Contact:

• Posted By: Spezilla Tube Co., Ltd.

• Phone: 86-21-57701837

• Address: No.18 Baosheng Road, Songjiang District, Shanghai, China, Shanghai , Shanghai , China

• Email:

• Business Description: Spezilla is an ISO9001 & 3A manufacturer and global supplier of stainless steel sanitary tubings, fittings and valves.

  Our products are manufactured using high grade raw materials and in compliance with international quality norms for the Food, Dairy, Beverage, Breweries, Cosmetic, Biotech and Pharma
