Stainless Steel Mesh Disk With Frame - China

SS Mesh Filters with Square or Rectangular Openings

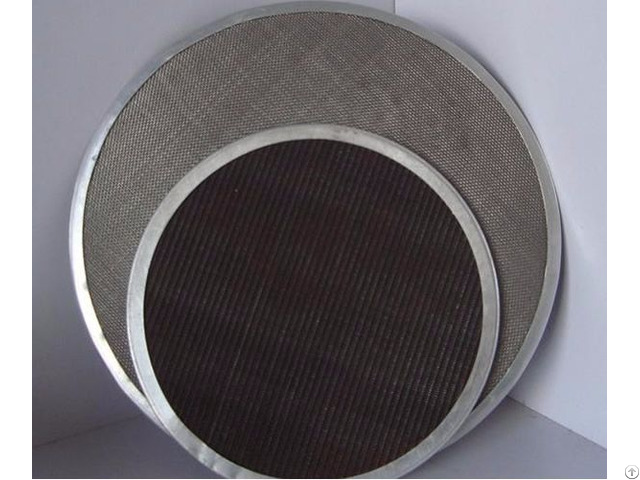

Stainless steel (304 or 316L) wire mesh disks with thin ROUND frame

Disk filters are mainly used in three-in-one or two-in-one filtration.

Multilayer stainless steel sintered wire cloth or woven wire mesh as filter media.

Openings are square or rectangular holes.

Popular Sizes for export from China :

Filter Rating of Disk Filters: 2-200μm

Disk filter diameter: 100 -3000mm

Major filter materials options: 304 or 316L stainless steel woven wire cloth, stainless steel sintered web, phosphate bronze wire cloth and brass wire cloth etc.

Two options of materials of stainless steel disk filters: SUS 304 or SUS 316L.

Options of filtration: Mesh 400 or 450.

Weaving options: Plain, Twill or Dutch Weave SS 304 Plain Weave Square Mesh Filter Cloth Disks

Weave Style： Plain Weave

Material： 302, 304, 304L, 316, 316L.

Mesh Count： 1x1-635x635 mesh/inch

Wire Diameter： 0.008 - 0.08 inch ( 0.0203 - 2.03 mm )

Mesh Opening： 0.0008-0.92 inch (0.0203-23.37 mm)

Mesh style： square Dutch Weave SS Mesh Sintered Sheet Punched and Framed Circles We manufacture and export the following disk products, to the United States, Australia, Egypt, Saudi Arabia, United Arab Emirates.

50 micron stainless steel round screens

SS mesh filter discs

SS multilayer screen packs filter disc

10um to 500um micro polyester disk filter mesh

Coffee filter screen

20mm filter disc screen

Water well ss 304 disk filter screen

30mm aluminium edge frame mesh screen filter disk

Stainless steel filter screen disk

10 micron pleats stainless steel wire mesh water, gas filter cartridge

Company Contact:

• Posted By: China YuXuan Extruder Screen Co., Ltd.

• Phone: +86-534-2650118

• Address: No. 118 Dong Fang Hong Road,Dezhou City, Shandong Province, Dezhou , Shandong , China

• Email:

• Website: https://www.extruderscreen.com

• Business Description: Extruder screen types are mainly mesh discs, leaf filters, spot welded mesh packs, rim or framed packs, cylinders or tube filters.

  It is made by wire mesh cloth processed into single layer or multi-layer pieces with optional frames.

  Metal Mesh Extruder Screen Filter is applied to provide a clean and clear melt filtration for plastic and rubber processing machinery.

  Filter Media commonly used are Stainless Steel Wire Cloth Woven or Sintered.

  The wire cloth is cut or punched into pieces or discs first, then compressed with multi-layers into screen packs and other forms.

  In plastic extrusion, stainless steel extruder screen is designed for PP, PE and other plastic hot-melt extruding processes.

  The fine mesh Dutch Weave Wire Cloth Layer together with a Plain Weave Square Mesh support layer forms screen packs are used for preventing impurities in fine extrusion.

  It is effect to keeps away mixing of foreign particles in finally equipped extrusion product.

  Featured Mesh Screen and Filter Strainers, Processed from Stainless Steel Woven Wire Mesh Cloth SUS302, 304, 304L, 316 and 316L:

  Spot Welded Circle or Round Disc Extruder Screens, to be placed into extruder head

  Cylinder Extruder Screen for Thermoplastic polymers

  Leaf Filters

  Multilayer Woven Wire Mesh Extruder Screen Packs of Dutch Weave Wire Cloth Plus Plain Weave Support Filter Mesh

  SS Wire Mesh Filter Disks, with thin frame or rims

  Dutch Reverse Weave Mesh Continuous Filter Belts

  Pleated Candle Filters

  Stainless Steel Wire Mesh Strainers
