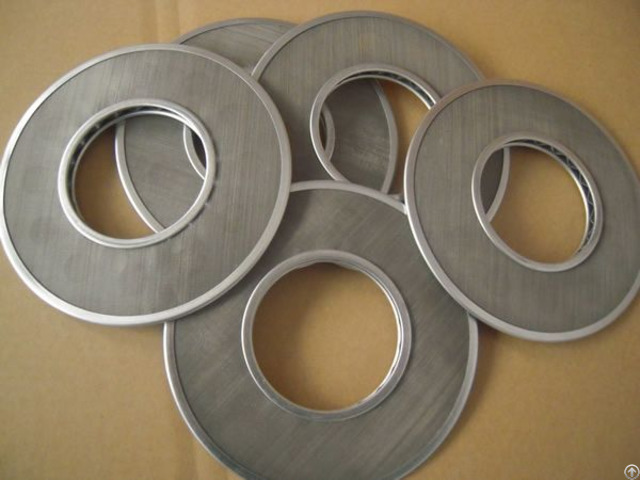

Rimmed Filter Screen Packs - China

Woven Mesh and Sintered Mesh Pack Screen Filter Elements

Pack Filters of stainless steel mesh woven and sintered mesh sheet: Circles, belt, square or rectangular shape, for Rubber and Plastic industries Extrusion

The pack filter is made of stainless steel woven wire mesh discs, single layer and multi-layer, with various pack diameters.

We can process wire mesh packs of rectangular or square, ring type wire belt and other filter fittings according to the specific requirements of the customers.

Pack screen is mainly used in rubber industry, plastic industry, oil industry, cereal filter products.

Minimum diameter of the extruder screens pack can be 2.5mm, and max.

diameter of the pack can be made to orders.

Basic material of the extruder screen packs are: Stainless steel wire mesh ( materials can be ss302, ss304, ss316, ss316L etc ).

SS Mesh Filter Packs: Filter Elements Designed for polymer and fiber filtrations, plastic extrusions and rubber process as followings:

Single screens- The screens are mainly made of stainless steel 304 and 316 - For oil-free applications, ultrasonic cleaned screens are upon request.

Multi-layer screens- welded packs and framed packs- The screens are mainly made of ultrasonic cleaned stainless steel wire cloth and non-woven fiber media.

The frames are available in aluminum, brass, copper and stainless steel with choice of mill finishing, electro-polishing or nickel plating.

Gaskets, diaphragms and O-rings- These elements are available in aluminum, brass, copper and stainless steel with choice of mill finishing, electro-polishing or nickel plating.

Candle filters and other custom-shaped elements are available upon request.

Company Contact:

• Posted By: China YuXuan Extruder Screen Co., Ltd.

• Phone: +86-534-2650118

• Address: No. 118 Dong Fang Hong Road,Dezhou City, Shandong Province, Dezhou , Shandong , China

• Email:

• Website: https://www.extruderscreen.com/

• Business Description: Extruder screen types are mainly mesh discs, leaf filters, spot welded mesh packs, rim or framed packs, cylinders or tube filters.

  It is made by wire mesh cloth processed into single layer or multi-layer pieces with optional frames.

  Metal Mesh Extruder Screen Filter is applied to provide a clean and clear melt filtration for plastic and rubber processing machinery.

  Filter Media commonly used are Stainless Steel Wire Cloth Woven or Sintered.

  The wire cloth is cut or punched into pieces or discs first, then compressed with multi-layers into screen packs and other forms.

  In plastic extrusion, stainless steel extruder screen is designed for PP, PE and other plastic hot-melt extruding processes.

  The fine mesh Dutch Weave Wire Cloth Layer together with a Plain Weave Square Mesh support layer forms screen packs are used for preventing impurities in fine extrusion.

  It is effect to keeps away mixing of foreign particles in finally equipped extrusion product.

  Featured Mesh Screen and Filter Strainers, Processed from Stainless Steel Woven Wire Mesh Cloth SUS302, 304, 304L, 316 and 316L:

  Spot Welded Circle or Round Disc Extruder Screens, to be placed into extruder head

  Cylinder Extruder Screen for Thermoplastic polymers

  Leaf Filters

  Multilayer Woven Wire Mesh Extruder Screen Packs of Dutch Weave Wire Cloth Plus Plain Weave Support Filter Mesh

  SS Wire Mesh Filter Disks, with thin frame or rims

  Dutch Reverse Weave Mesh Continuous Filter Belts

  Pleated Candle Filters

  Stainless Steel Wire Mesh Strainers

  Our Products:

  - Extruder Screen Packs

  - Disc Type Extruder Screen Filter

  - Extruder Screen Mesh Cylinder

  - Single Layer Wire Mesh Disc

  - Rimmed Filter Screen Packs
