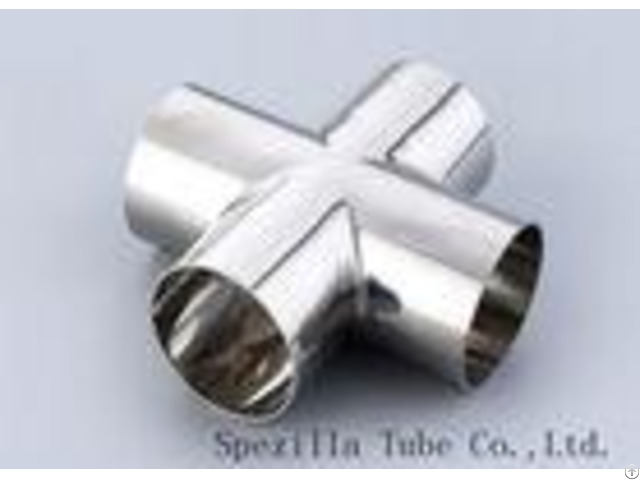

Sf1 Polished Stainless Steel Sanitary Fittings For Pharmaceutical Equipment - China

SF1 Polished Stainless Valves And Fittings for pharmaceutical equipment ASME BPE and Sanitary Fittings Sanitary ASME BPE fittings, SFF1 and SFF4 both buttweld and sanitary clamp Sanitary buttweld and sanitary clamp fittings Tube OD weld fittings Stock sizes 1/4 inch through 4 inch Sanitary fittings and tube up to 12 inch OD is available Spezilla can offer ASME BPE and Sanitary Fittings All types of sanitary stainless steel flow control equipment for the food & beverage, dairy, cosmetic, biotechnology, pharmaceutical, and electronic processing industries.

Size : Usually 1" - 4", any size is demandable Fitting ends : BS, DIN, SMS, A270, Weld ends, Male ends and Clamp ends Working pressure : * -0.9 to 10 Bar for cast body * -0.9 to 20 Bar for forged body Working temperature : -10oC up to 150oC Disk head size : * 9.4 x 9.4mm available for cast & forged body * 8 x 12mm, 12 x 12mm available for forged body Safety : 100% 6kgf/cm2 air or 25kgf/cm2 hydraulic and 300k times cycle test Characteristics: Sanitary Tri-Clamp Fittings meet all 3A requirements Sanitary Tri-Clamp Fittings Stocking Alloys: T304 or T316L Sanitary Tri-Clamp Fittings Sizes: 12 12 OD Tube Sanitary Tri-Clamp Fittings Sanitary Finish: 180 Grit Polish ID/OD Material: 316L, chemical composition in accordance with ASTM A240 304L, 1.4404 and 1.4435 also available EN10088 Tolerances: According to ASME BPE-2009 Field Serviceable 100% Hydraulic Pressure Tested Economical Price for all sizes from 1.5" -- 4" Valve line includes, ball, butterfly, check, seat, long stroke, mix proof, PMO, diaphragm and sampling.

All valves can be supplied with a variety of actuation and control packages.

Sanitary pump line includes both centrifugal and positive displacement pumps.

- - - - Nominal Size A inch mm.

inch mm.

3/4 | x | 1/2 | 19.05 | x | 12.70 | 1.000 | 25.4 | 1 | x | 1/2 | 25.40 | x | 12.70 | 1.000 | 25.4 | | x | 3/4 | 25.40 | x | 19.05 | 1.000 | 25.4 | 1 1/2 | x | 1/2 | 38.10 | x | 12.70 | 2.500 | 63.5 | | x | 3/4 | 38.10 | x | 19.05 | 2.000 | 50.8 | | x | 1 | 38.10 | x | 25.40 | 2.000 | 50.8 | 2 | x | 1/2 | 50.80 | x | 12.70 | 6.000 | 152.4 | | x | 3/4 | 50.80 | x | 19.05 | 5.000 | 127.0 | | x | 1 | 50.80 | x | 25.40 | 4.000 | 101.6 | | x | 1 1/2 | 50.80 | x | 38.10 | 2.000 | 50.8 | 2 1/2 | x | 1 1/2 | 63.50 | x | 38.10 | 4.000 | 101.6 | | x | 2 | 63.50 | x | 50.80 | 2.000 | 50.8 | 3 | x | 1 | 76.20 | x | 25.40 | 8.000 | 203.2 | | x | 1 1/2 | 76.20 | x | 38.10 | 6.000 | 152.4 | | x | 2 | 76.20 | x | 50.80 | 4.000 | 101.6 | | x | 2 1/2 | 76.20 | x | 63.50 | 2.000 | 50.8 | 4 | x | 1 1/2 | 101.60 | x | 38.10 | 10.000 | 254.0 | | x | 2 | 101.60 | x | 50.40 | 8.000 | 203.2 | | x | 2 1/2 | 101.60 | x | 63.50 | 6.000 | 152.4 | | x | 3 | 101.60 | x | 76.20 | 4.000 | 101.6 | 6 | x | 2 | 152.40 | x | 50.80 | 5.500 | 139.7 | | x | 3 | 152.40 | x | 76.20 | 5.500 | 139.7 | | x | 4 | 152.40 | x | 101.60 | 5.500 | 139.7 | 8 | x | 4 | 203.20 | x | 101.60 | 6.000 | 152.4 | | x | 6 | 203.20 | x | 152.40 | 6.000 | 152.4 | - - - - Short Cross - - - - Nominal Size A B inch mm.

inch mm.

inch mm.

1 | 25.40 | 1.125 | 28.60 | 2.250 | 57.20 | 1 1/2 | 38.10 | 1.656 | 42.10 | 3.313 | 84.20 | 2 | 50.80 | 2.063 | 52.40 | 4.125 | 104.80 | 2 1/2 | 63.50 | 2.344 | 59.50 | 4.688 | 119.10 | 3 | 76.20 | 2.594 | 65.90 | 5.188 | 131.80 | 4 | 101.60 | 3.438 | 87.30 | 6.875 | 174.60 | - - - - Short Equal Tee - - - - Nominal Size A B inch mm.

inch mm.

inch mm.

1 | 25.40 | 1.125 | 28.60 | 2.250 | 57.2 | 1 1/2 | 38.10 | 1.656 | 42.10 | 3.312 | 84.2 | 2 | 50.80 | 2.062 | 52.40 | 4.124 | 104.8 | 2 1/2 | 63.50 | 2.344 | 59.50 | 4.688 | 119 | 3 | 76.20 | 2.594 | 65.90 | 5.188 | 131.8 | 4 | 101.60 | 3.438 | 87.30 | 6.876 | 174.6 | - - - -
