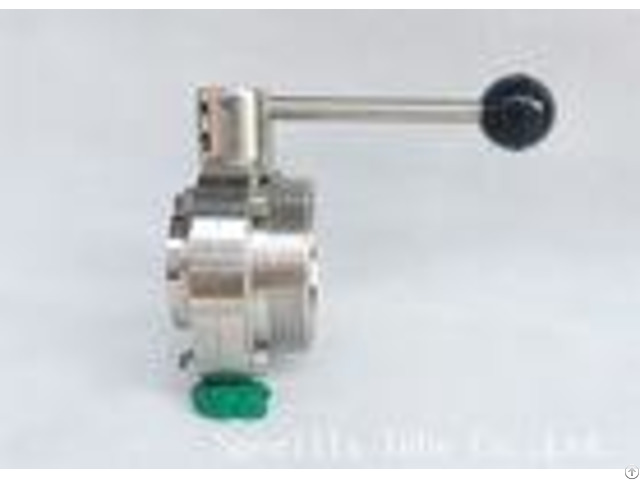

Hygienic Aisi 304 Stainless Butterfly Valve Welded Fittings Tri Clamp Connection - China

AISI 304 Stainless Steel Santiary pipe fittings butterfly Vavles welded fittings for Food Dairy Equipment Sanitary Valves And Fittings 1/2'' to 4'' TP316L Stainless Steel Reducing Tee Cross Ends All sizes of clamp end also available ASME BPE PRODUCT SPECIFICATION Material: 316L, chemical composition in accordance with ASTM A240 304L, 1.4404 and 1.4435 also available EN10088 Tolerances: According to ASME BPE-2009 Spezilla is your source for T304 or T316L Sanitary Clamp Fittings and Gaskets primarily found in the Bakery, Beverage, Cosmetic, Dairy, Food or Pharmaceutical Industries.

Our Sanitary Clamp Fittings meet or exceed A270 standards with an ID polish of 180 Grit or 25 Ra on the Inside of the Tube and a 150 Grit or 32 Ra on the Outside of the tube.

Sanitary Solutions stock clamp fittings that are capped, bagged and marked with the size and alloy and a heat number for full traceability for either alloy.

All types of sanitary stainless steel flow control equipment for the food & beverage, dairy, cosmetic, biotechnology, pharmaceutical, and electronic processing industries.

We also carry a wide assortment of sanitary fittings, gaskets, pumps, and valves.

Additional sizes and types are available upon request.

Valve line includes, ball, butterfly, check, seat, long stroke, mix proof, PMO, diaphragm and sampling.

All valves can be supplied with a variety of actuation and control packages.

Sanitary pump line includes both centrifugal and positive displacement pumps.

Size : Usually 1" - 4", any size is demandable Fitting ends : BS, DIN, SMS, A270, Weld ends, Male ends and Clamp ends Working pressure : * -0.9 to 10 Bar for cast body * -0.9 to 20 Bar for forged body Working temperature : -10oC up to 150oC Disk head size : * 9.4 x 9.4mm available for cast & forged body * 8 x 12mm, 12 x 12mm available for forged body Safety : 100% 6kgf/cm2 air or 25kgf/cm2 hydraulic and 300k times cycle test Actuator - - - - NO.

| PART NAME | MATERIAL | 1 | KNOB | PLASTIC | 2 | SHAFT-BAR | SS304 | 3 | SPRING | SS304 | 4 | HOLDER | SS304 | 5 | BODY | SS304, 316, 316L | 6 | DISC | SS304, 316, 316L | 7 | GASKET | SILICON, EPDM | 8 | BOLT | SS304 | - - - - Sanitary Butterfly Valves - - - - A | B | C | D | F | Size | Weld | Clamp | Male | W/C/M | W/C/M | 1" | 47 | 80 | 122.24 | 73 | 22 | 223 | 1.5" | 47 | 80 | 134.94 | 73 | 22 | 238 | 2" | 52 | 80 | 163.51 | 92 | 22 | 245 | 2.5" | 54 | 80 | 174.63 | 111 | 22 | 247 | 3" | 62 | 90 | 195.26 | 123 | 24 | 254 | 4" | 80 | 100 | 228.60 | 161.5 | 24 | 271 | - - - - Gripper Handle 12 Position

Company Contact:

• Posted By: Spezilla Tube Co., Ltd.

• Phone: 86-21-57701837

• Address: No.18 Baosheng Road, Songjiang District, Shanghai, China, Shanghai , Shanghai , China

• Email:

• Business Description: Spezilla is an ISO9001 & 3A manufacturer and global supplier of stainless steel sanitary tubings, fittings and valves.

  Our products are manufactured using high grade raw materials and in compliance with international quality norms for the Food, Dairy, Beverage, Breweries, Cosmetic, Biotech and Pharma
