Optical Window，mirror，beamspl itter - China

price: 0.10 Dollar US$

Optical Window，mirror，beamspl itter

Products Photos Catalog Optical Window Mirror Photos Catalog

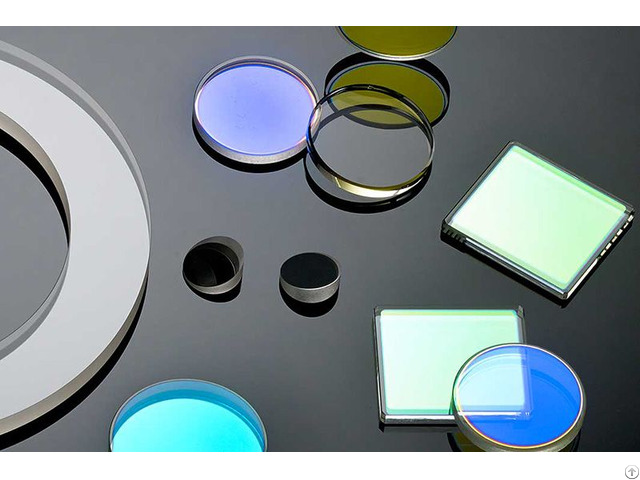

optical window, optical mirror, beamsplitter Mirror is a reflecting surface that forms an image of an object when light rays coming from that object fall upon it.

Usually mirrors are made of plate glass, one side of which is coated with metal or some special preparation to serve as a reflecting surface.

UPT offers dielectric coated mirrors and metal coated mirrors which are made of substrate such as Bk7, K9, Fused Silica, CaF2, Sapphire.

Specifications: Material: BK7 Grade A Optical Glass

Typical Diameter (Φmm) 8.0, 10.0, 12.7, 15.0, 20.0, 25.4, 30.0, 50.8

Typical Thickness (mm) 2.0, 3.5, 5.0, 6.5

Diameter Tolerance (mm) +/-0.2 (General), +0.0/-0.02 (High Precision)

Thickness Tolerance (mm) ±0.2 (General), ±0.05 (High Precision)

Clear Aperture >80% (Small Size), >95% (Large Size)

Parallelism 6 min.

(General), 3 sec.

(High Precision)

Surface Quality80/50 (General), 10/5 (High Precision)

Flatness (per 25mm@633nm)λ(General), λ/10 (High Precision)

Bevel (face width x 450)

<0.25mm

Coating：Uncoated, HR, PR, Metal -Ag, Al, Au Coating, etc.

Note for Mirror:

(1).

Other optical glass or optical crystals of Mirrors are available.

(2).

Custom-made Mirrors with any size from diameter 2mm to diameter 280mm and with shape of quadrate, triangular or other special sharp are available upon request.

(3).

Thickness from 1mm to 30 mm are available upon request.

(4).

Typical surface quality is 60/40, better precision such as 40/20, 10/5 is available upon request.

United photonics technology


Company Contact:


  • Phone: +86 181 50811362

  • Address: 2nd Floor, Building 6, No.26, ChangLong Middle Road, TieLing industrial District, MinHou, Fuzhou, Ch, Minhou , fuzhou , China

  • Email: Email


Published date: May 24, 2022

  • Business Description: upt is a leading optical component manufacturer, Like waveplate, Prism, Window, BBO, LBO crytal ,Glan laser polarizer, Rochon polarizer and etc，

    we focus on them, With good quality and competitive price, Few quantity or batch all acceptable,

    If any requirements, pls contact us freely,Thanks,

    United photonics Technology
