    Bbo Lbo Laser Crystal

    Products Photos Catalog Bbo Lbo Laser Crystal Photos Catalog

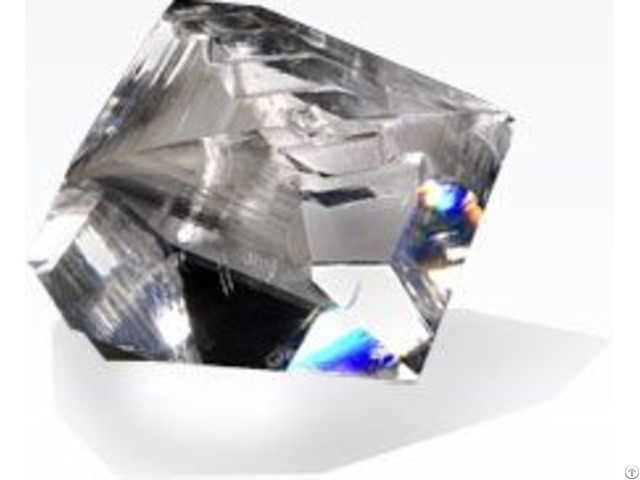

    United photonics technology BBO Crystal (Beta-Barium Borate Crystal)

    BBO crystal is an important nonlinear optical crystal with combination of unique optical properties.

    Broad transmission and phase matching ranges, large nonlinear coefficient, high damage threshold and excellent optical homogeneity provide attractive possibilities for various nonlinear optical applications.

    UPT offers BBO specification: LBO Crystal (Lithium Triborate Crystal)Note: OEM Dimension, different axis angle cutting and coating and damage threshold upon request others are available upon request.

    LBO crystals is an excellent nonlinear crystal.

    For frequency doubling(SHG), tripling(THG) of Nd: YAG, Nd: YLF, Nd: YVO4 lasers, it is one of the most useful nonlinear optical materials in ultraviolet and visible laser applications.

    Advantages:

    • broad transparency range from 160nm to 2600nm (see Figure 1); • high optical homogeneity (δn≈10-6/cm) and being free of inclusion; • relatively large effective SHG coefficient (about three times that of KDP); • wide acceptance angle and small walk-off; • type I and type II non-critical phase matching (NCPM) in a wide wavelength range; • spectral NCPM near 1300nm.

    • high damage threshold(18.9 GW/cm 2 for a 1.3ns laser at 1053nm); LBO has the highest damage threshold in all the commonly-used inorganic NLO crystals.

    Therefore, it is the best candidate for high average power SHG and other nonlinear optical processes.

    • SHG, THG of Nd lasersLBO's main applications • SHG of Ti: Sapphire, Cr: LiSAF and Alexandrite lasers • OPA and OPO UPT offer LBO specification:

    Note: OEM Dimension, different axis angle cutting and coating and damage threshold upon request, others are available upon request.

    United photonics technology


    Company Contact:


    • Phone: +86 181 50811362

    • Address: 2nd Floor, Building 6, No.26, ChangLong Middle Road, TieLing industrial District, MinHou, Fuzhou, Ch, Minhou , fuzhou , China

    • Email: Email


    Published date: May 24, 2022

    • Business Description: upt is a leading optical component manufacturer, Like waveplate, Prism, Window, BBO, LBO crytal ,Glan laser polarizer, Rochon polarizer and etc，

      we focus on them, With good quality and competitive price, Few quantity or batch all acceptable,

      If any requirements, pls contact us freely,Thanks,

      United photonics Technology
