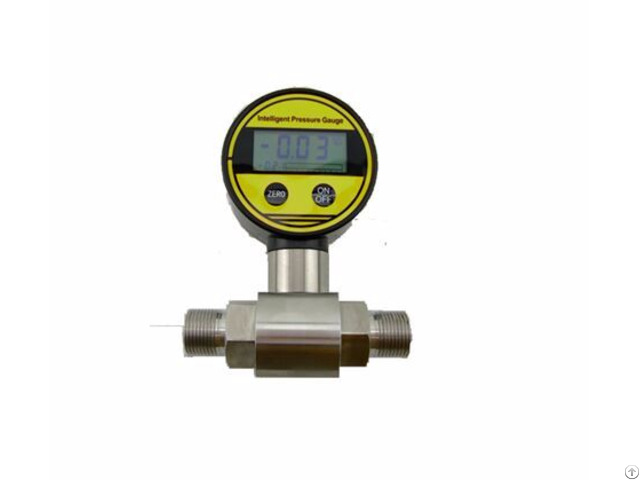

Differential Pressure Controller - China

Differential Pressure Controller

Model: CJZK-06

Description:

CJZK-06 intergrades with meassure, display and controlling.

It utlizes high accuracy differential pressure sensor as testing component.

It with circuit generation is high stable and realises continous measuring and switch controlling Specification: Measure Range: 0-10, 351000Kpa 0-2---3.5Mpa

Overload Pressure: ≤150%FS

Pressure Type: Differential Measure Media: gas or liquid compatible with 316L stainless steel

Output Signal: 2 sets of switch signals

4-20mA standard signal output (optional)

Relay Load: 30V/5A DC 240V/3A AC

Power Supply: 24VDC/220VAC

Accuracy: ±0.3%F.

S ±0.5%F.

S

Pressure Port: M20×1.5 G1/2 or customize

Long-term Stability: ≤±0.3%F.

S/year

Media Temperature: -20℃～85℃ Response Time: ≤1ms

Load Impedence: R= (U-2.5)/0.02- Ro, U is power supply, Ro is internal resistance of wire

Life time: >1* 10^8 pressure circulation

Diaphragm Material: 316L stainless steel

Case Material: 1Cr18Ni9Ti

Electrical Connection: Connecting Terminal

Protection Level: IP65

Company Contact:

• Posted By: Xian Chuangjin Electronic Technology Co., LTD

• Phone: 8602989161392

• Address: The 30th Floors,Kaixuan Massion,Xuanwu Road West,Weiyang District, Xian , Shaanxi , China

• Email:

• Website: http://www.xian-sensor.com

• Business Description: Xian Chuangjin Electronic technology Co., LTD founded in year of 2013 is professional in researching and providing a series of Pressure/Level/Temperatur e Transmitter, Sensor, Switch Controller, Flow Meter, Density Meter, Vibration Wire Piesometer, MINI Osmometer, Earth Pressure Cell, Dynamic Strain Amplifier.

  We offer ODM and OEM service and own ISO9001: 2000 Certificate.

  Pressure Transmitters and Temperature Transmitters are granted CE certificate.

  These products are also widely used in aeronautical and space, waterway, navigation, petrochemical industry, irrigation works, electric power, coal metallurgy, water supply, natural gas supply, steam and warm supply, medicine and bioengineering etc and scientific research institutions.



  When there's no standard product to fit your application or cost requirements, simply talk to us about your requirements, both technical and budgetary, and well develop your customer solution, including power supplies, measurement range, output, port type etc, then fully test the system prior to supplying it to you on time, complete and ready to install.

  Welcome customer from domestic and abroad to inquiry.



  Our Products:

  - Intelligent Pressure Transmitter

  - Intelligent Level Transmitter

  - Static Strain Amplifier

  - Dynamic Strain Amplifiers

  - Insert Temperature Transmitter
