    • Vibration Sensor - China

    price: 275.00 Dollar US$

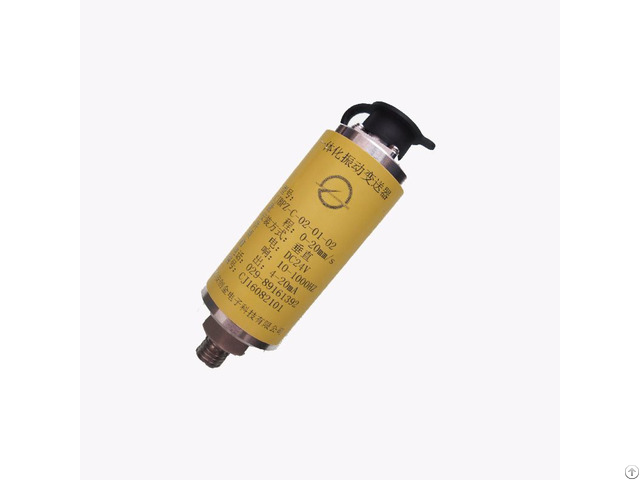

    Vibration Sensor

    Products Photos Catalog Vibration Sensor Photos Catalog

    Vibration Sensor Discription:

    CJVB all-in one vibration sensor integrates piezoelectric acceleration sensor with precision measuring circuit that composes high precision vibration measure system.

    The sensor can connect with DCS, PLC or other equioment directly.

    It is ideal for measuring vibration of fan, motor, water pump factory equipment etc.

    Features: Wide measure range

    All material is Stainless steel Various port type Protection Grade: IP65 Performance Parameters:

    Frequency Response: 5-1000Hz Natural Frequency of Vibration: 10Hz

    Measurement Range: Displacement Range: 0-200um, 0- 500um, 0-1000um (opitional) Speed Range: 0-10.0mm/s, 0-20.0mm/s, 0-100.0mm/s (optional)

    Working Voltage: 24V DC Output Currency: 4-20mA

    Output Impedance: ≤500

    Signal line Specification: wires (DV24V power supply&4-20mA output uses these 2 wires together) 3 wires (earth wire, power supply wire, output wire)

    Max Acceleration: 10g

    Measurement Direction: vertical or horizontal

    Working Ambient: Temperature: -40°C to 85°C, Relative humidity ≤90%

    Size: φ45×80(mm)

    Weight: 450g

    Thread: M10×1.5

    Protection Grade： IP65


    Company Contact:


    • Phone: 8602989161392

    • Address: The 30th Floors,Kaixuan Massion,Xuanwu Road West,Weiyang District, Xian , Shaanxi , China

    • Email: Email


    Published date: December 21, 2017 - Modified date: December 21, 2017

    • Business Description: Xian Chuangjin Electronic technology Co., LTD founded in year of 2013 is professional in researching and providing a series of Pressure/Level/Temperatur e Transmitter, Sensor, Switch Controller, Flow Meter, Density Meter, Vibration Wire Piesometer, MINI Osmometer, Earth Pressure Cell, Dynamic Strain Amplifier.

      We offer ODM and OEM service and own ISO9001: 2000 Certificate.

      Pressure Transmitters and Temperature Transmitters are granted CE certificate.

      These products are also widely used in aeronautical and space, waterway, navigation, petrochemical industry, irrigation works, electric power, coal metallurgy, water supply, natural gas supply, steam and warm supply, medicine and bioengineering etc and scientific research institutions.



      When there's no standard product to fit your application or cost requirements, simply talk to us about your requirements, both technical and budgetary, and well develop your customer solution, including power supplies, measurement range, output, port type etc, then fully test the system prior to supplying it to you on time, complete and ready to install.

      Welcome customer from domestic and abroad to inquiry.



      Our Products:

      - Intelligent Pressure Transmitter

      - Intelligent Level Transmitter

      - Static Strain Amplifier

      - Dynamic Strain Amplifiers

      - Insert Temperature Transmitter
