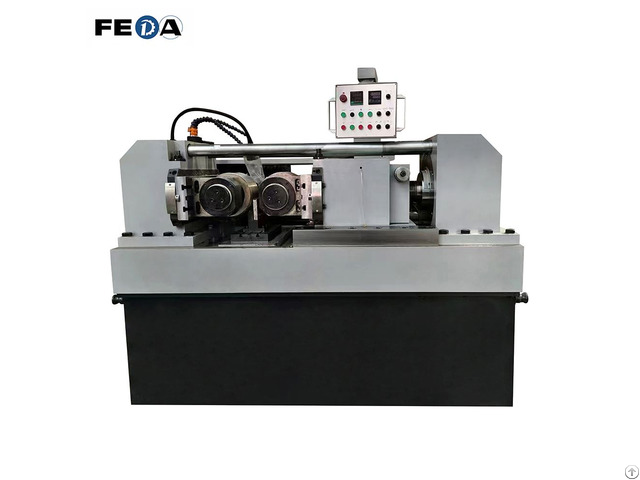

Feda Fd 100t Heavy Duty Thread Rolling Machine - China
price: 72180.00 Dollar US$
1 - Automatic feeding with adjustable brackets
2 - Speed is adjustable for different products
3 - 54mm hole diameter for SKD11/DC53 thread rolling dies 4 - Max.
Rolling pressure is about 1000KN
5 - It is easy to operate and maintain the machine
6 - CE, ISO9001-2008 Specification
Working diameter 14-150mm
Thread pitch 1.0-15mm
Thread length In feed or Thru feed
Spindle speed 16/21/27rpm (variable speed)
Outside diameter of rolling die 220-300mm
Inside diameter of rolling die 110mm Thickness of rolling die 250mm
Feed stroke 0-20mm
Mian motor 37KW
Hydraulic motor 7.5KW
Max rolling pressure 100T
Supply voltage 380V 3P 50Hz
Weight(reference) 8800(KG)
Package Dimension(L*W*H) 2550*2450*2050mm
Dimension(L*W*H) 2450*2350*1900mm
Company Contact:
- Posted By: Shenzhen Feda Machinery Industry Co.,Ltd
- Phone: 19166277530
- Address: Hong Hai Building, Hongxing Community, Songgang Street, Bao'an District, Shenzhen, China, Shenzhen , Guangdong , China
- Email:
- Website: https://www.szfeda.com/
Published date: July 14, 2025
- Business Description: FEDA is a modern state-level high-tech enterprise integrating R & D, production and sales,which focus on manufacturing of thread rolling machine,thread rolling dies, automatic tapping machine, auto lathe machine & vibration bowl for more than 20 years, locates in Shenzhen, China.
Our Products:
- Feda Fd 100t Heavy Duty Thread Rolling Machine
- Feda Fd 80t Two Roll Threading Machine
- Feda Fd 50t Steel Rod Solid Bar And Cam Type Thread Machine
- Feda Fd 35t Rebar Thread High Speed And Heavy Duty Screw Rolling Machine
- Feda Fd 25t Auto Feeding Bolt Thread Rolling Machine
