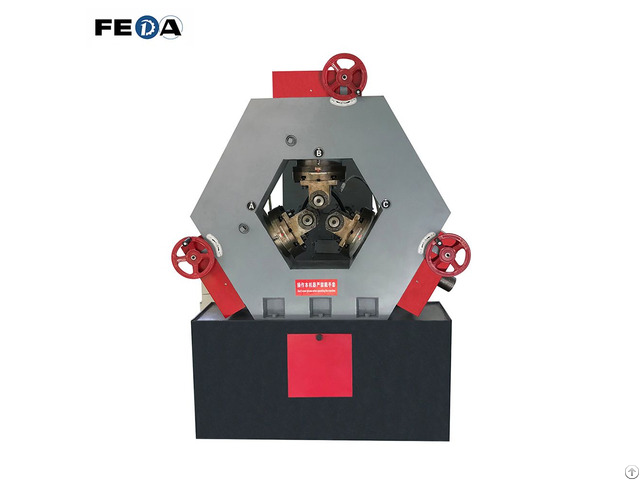

Fd 60f Auto Parts Thread Rolling Machine - China
price: 11950.00 Dollar US$
1 - Three rollers to keep inside diameter same as that before rolling 2 - Usually used for making thread, knurling on pipe, tube parts 3 - High precision, stability and high durability 4 - Automatic feeding device(Vibration bowl) can be designed 5 - CE, ISO9001-2008 Specification
Working diameter 20-60mm
Range of pitch 1.0-4.0P
Thread length In feed or Thru feed
Spindle speed 90/120rpm (variable speed)
Outside diameter of rolling die 100mm- 150mm
Inside diameter of rolling die 40mm Length of rolling dies 100mm
Max.
distance between the roller shafts 100mm
Output(pcs/min) 10-35(pcs/min)
Swiveling Angle(degree) ±3°
Main power motor 5.5 KW
Hydraulic motor 2.2 KW
Max rolling pressure 15T
Supply voltage 380V 3P 50Hz
Weight(reference) 2250KG
Dimension(L*W*H) 1650*1670*1850 mm
Package(L*W*H) 1600*1620*1800 mm
Q1 - Are you factory or trading company ?
Company Contact:
- Posted By: Feda Industry Co., Ltd
- Phone: +8613392185053
- Address: No. 608, Hong Hai Building, Hongxing Community, Songgang Street, Bao'an District, Shenzhen, China, ShengZhen , GuangDong , China
- Email:
- Website: https://www.szfeda.com/
Published date: June 28, 2025
- Business Description: We mainly produce thread rolling machine and dies for making external thread on bolts, thread rods, fasteners, etc.
