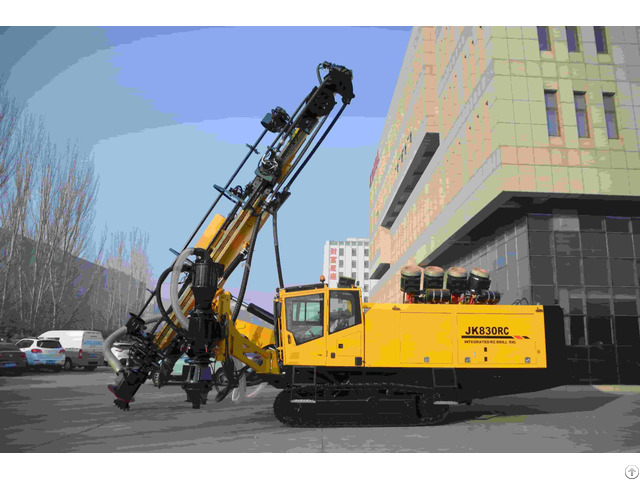

Jk830rc Reverse Circulation Drilling Rig - China
price: contact company for price
JK830RC is an integrated hydraulic DTH drilling rig, which brings you more automation, higher working efficiency, better reliability and simpler operation.
The FOPS-approved cabin and automatic pipe handling system come standard.
Heavy-duty undercarriage with wide tracks ensures both extreme maneuverability and improved safety.
The hydraulic dust collecting system meets the latest environmental protection regulations and it's a reliable solution to realize the modern green mining.
Weight kg 25000
Length mm 12300
0 mm 3200
Height mm 4200(3500)(3500 without)
Track length mm 3646
Ground contact length mm 2912
Track center distance mm 2349(2749)(total wdth2749)
Track width mm 400
Ground clearance mm ≥400
Track oscillation ° ±10
Walking speed km/h 1.6(slow speed)
3(fast speed)
Max.
tractive force KN 170
Grade ability ° 20
Company Contact:
- Phone: +8618731372225
- Address: No.142, Zhonglou Street, Xuanhua District, Zhangjiakou City, Hebei , China
- Email:
- Website: https://www.jkdrilling.com/
Published date: June 1, 2026
- Business Description: Zhangjiakou Xuanhua Jinke Drilling Machinery Co., Ltd (JK Drilling) is a large enterprise specialized in development and manufacture of all kinds of DTH Drilling Equipment.
The major products include All-In-One type and separate type DTH rock drilling rigs, DTH well drilling rigs and construction drilling rigs.
The DTH rock drilling rigs are widely used in blasthole drilling of mining, hydropower, transportation and defense projects, as well as harbor and channel construction; DTH well drilling rigs are specialized in drilling the boreholes of large diameter and depth, for instance, water well drilling and geothermal well drilling.
