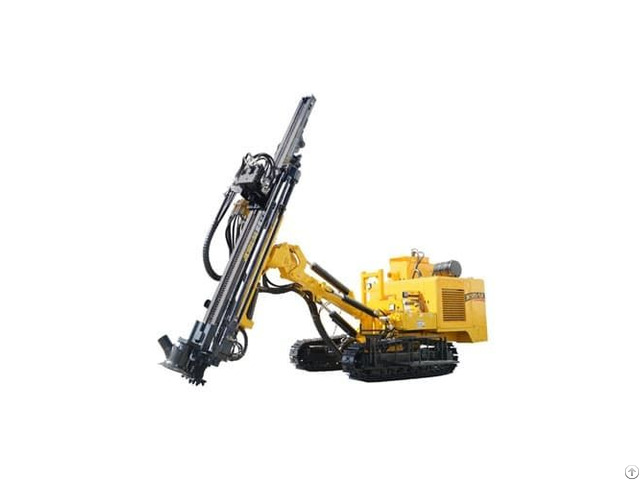

Jk595 5a Crawler Mounted Hydraulic Dth Drilling Rig - China
price: contact company for price
Crawler-mounted hydraulic DTH drilling rig is equipped with auxiliary rod changer, which enables one-person operation.
With a power unit composed of diesel engines and hydraulic oil pumps, the rig is efficient and energy-saving.
A hydraulic motor facilitates drilling, feeding, lifting, walking and hydraulic cylinder positioning.
Features
Equipped with auxiliary rod changer, the rig can be operated by one operator.
Applications
The surface drilling rig is mainly used for hydro-power engineering, open pit mining, road construction and blasting operation of national defense engineering.
Model JK595-5A
Borehole diameter 90-165mm
Drill rod length 50m
Drill rod carousel 5×3m
Applicable rock hardness f=6-20
Working air pressure 1.2-2.5MPa
Air consumption 11-21m³/min
Feeding stroke 4138mm
Max.
horizontal drilling height 3370mm
Rotation rate 0-150rpm
Rotation torque 3300N·m
Walking speed 2.2km/h, 3.6km/h
Company Contact:
- Phone: +8618731372225
- Address: No.142, Zhonglou Street, Xuanhua District, Zhangjiakou City, Hebei , China
- Email:
- Website: https://www.jkdrilling.com/
Published date: June 1, 2026
- Business Description: Zhangjiakou Xuanhua Jinke Drilling Machinery Co., Ltd (JK Drilling) is a large enterprise specialized in development and manufacture of all kinds of DTH Drilling Equipment.
The major products include All-In-One type and separate type DTH rock drilling rigs, DTH well drilling rigs and construction drilling rigs.
The DTH rock drilling rigs are widely used in blasthole drilling of mining, hydropower, transportation and defense projects, as well as harbor and channel construction; DTH well drilling rigs are specialized in drilling the boreholes of large diameter and depth, for instance, water well drilling and geothermal well drilling.
