Hy Dy10 Blue Co2 Laser Power Supply For Reci W2 Laser Tube - China

price: 98.00 Dollar US$

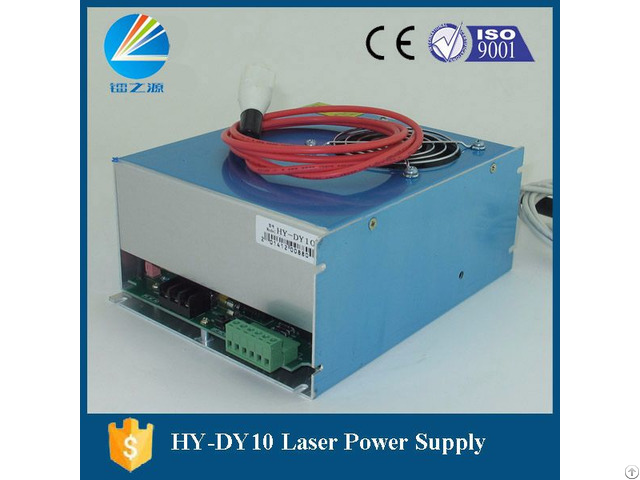

Hy Dy10 Blue Co2 Laser Power Supply For Reci W2 Laser Tube

Products Photos Catalog Dy10 Blue Laser Power Photos Catalog

Main features

1)This power supply is specially designed for special laser tube.

It makes laser tube output larger and more stable.

2) Quick response speed and good effect: It can enlarge laser power and prolong laser tube’s service life.

3) Easy Control: The start and stop of laser can be easily controlled by TTL level.

4) The power supply has output open circuit protection.

5) The power supply has TTL signal indication, water through signal indication and laser output indication.

6)This power supply has the BUTTON to test output laser manually.

7) Application: Sculpture and cut acrylic, fabric, double color sheet and rubber, etc.

Specifications

Type HY-DY10

Input Input voltage AC220V or 110V(please specify when placing order)

AC frequency 47-440HZ

Max input power 450W

Max input current 5A

Output Max output voltage 35KV

Max output current 24mA

Efficiency >=90%(full load)

MTBF(Mean time between failure) >=10000hours

Response speed <=1ms(from the TTL signal is given to the output current up to 90% of setting current)

Withstand voltage Input-output, input-enclosure: AC1500V 10mA 60s, output cathode is connected with enclosure.

Environment Operating temperature: -10~40degrees , relative humidity: <=90%

Cooling Force air cooling(FAC)

Dimension 78*155*75mm

Weight 1.75kg


Company Contact:


  • Phone: 0081-15165137380

  • Address: Lanxiang Road, JINAN , Shandong , China

  • Email: Email


Published date: December 17, 2016 - Modified date: December 17, 2016

  • Business Description: Shandong Laser Source Technology Co., ltd. is the same as Jinan Hongyuan Electric Co., Ltd (China) Jinan Hongyuan Electric Co., Ltd.

    It is a high-tech enterprise, located in the core area of electronically developed regions-Jinan.

    Professional designer & manufacturer & exporter of laser power supply with 15 years experience.

    Have good long - term cooperation with YUEMING laser, HAN'S laser, GCC laser, RECI laser, EFR laser, Boye laser, Beyond laser, Senfeng laser, Bodor laser, SUN-UP laser, etc.

    Hope we will have chance to help you in your business line.



    We produce strictly according to ISO9001: 2008 international quality management system elements of conduct production activities.



    Welcome to our factory!!!
