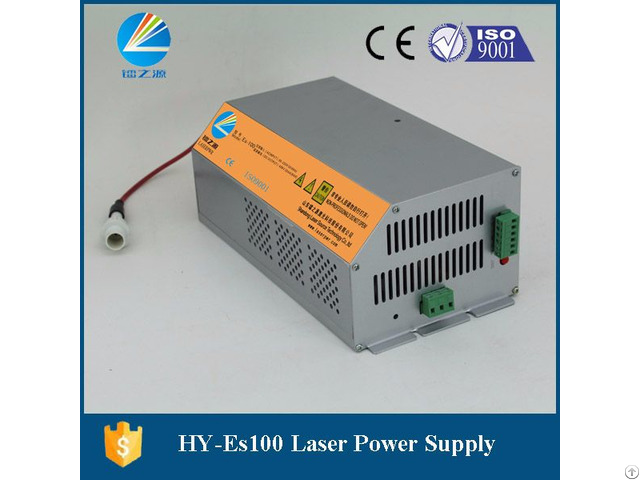

Hy Es100 Co2 Laser Power Supply For Efr F4 Laser Tube - China

1 - Main features:

1 - Initiative PFC function, AC90-250V wide input voltage range, universal for all countries voltage.

2 - Special design for outer shell, more beautiful appearance, better heat dissipation.

3 - Improved current control mode, more stable laser, better compatibility, more adaptable for different kinds of laser tubes.

4 - Simple power control, user can control laser with high or low level signal.

5 - With test button, easy to test laser tube and power supply.

4 - Small size outer shell, suitable for installing on the beam of cutting bed.

2 - Main specifications:

Item Es80 Es100 Es150

Input Input voltage AC90-250V

AC frequency 47---440Hz

Max input power 500W 700W 900W

Max input current

(when 90V input) 6A 8A 10A

Output Max output voltage 40KV 45KV 55KV

Max output current 28mA 32mA 38mA

Efficiency ≥90%(full load)

MTBF(mean time between failure) ≥10000hours

Response speed ≤1mS(the time from the signal is given to output current

reaches 90% of set current )

Withstand voltage Input-output, input-shell: AC1500V 10mA 60s

Working environment Temperature(-10~40)℃, relative humidity: ≤90%

Cooling Force air cooling

Network cable Length(M) 1.5M/3M 1.5M/3M 1.5M/3M

Dimension L*W*H(mm) 235*144*104 278*144*104 330*144*104

Weight Net weight(KG) 2.15kg 2.45kg 3.2kg

Color Silver grey
