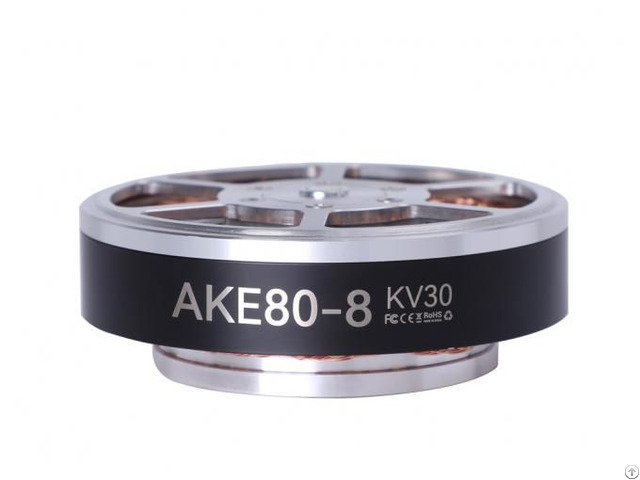

Product Description The CubeMars AKE80-8 KV30 quasi-direct drive motor is designed to deliver a high-precision, high-response, and lightweight driving solution.

This module integrates a brushless DC motor with a planetary gearbox, featuring ultra-low backlash (approximately 9 arcmin) and a peak torque density as high as 52.63 Nm/kg.

It is ideal for applications such as exoskeletons, collaborative robots, legged robots, and robotic arm joints.

Core Specifications Motor Dimensions: Ф87*32mm Motor Weight: 570g Peak Torque: 30Nm No-load Speed: 195rpm Product Highlights Low Backlash Design: Backlash controlled within approximately 9 arcmin, enabling precise positioning and motion control High Torque Density: Delivers 30 Nm peak torque with a weight of only 570 g, achieving a torque density of approximately 52 Nm/kg Flexible Installation: Equipped with threaded and through holes on the base, supporting bidirectional mounting Gearbox Optimization: Optimized core components of the gearbox enhance motor lifespan and reduce noise Winding Upgrade: Improved slot fill rate and winding process reduce copper losses, resulting in higher efficiency and lower temperature rise Wide Range of Applications: Particularly suitable for exoskeletons, robotic joints, and collaborative robot limb units where high responsiveness and precision are required Packaging Contents AKE80-8 KV30 Quasi-Direct Drive Motor (Comes standard without a driver board)x1 Certificate of Conformance x1 Related Accessories Driver Board 3.0 Large Board R-link V3.0
