Tck 86a Cnc Lathe Machine - China

price: contact company for price

Tck 86a Cnc Lathe Machine

Products Photos Catalog Tck 86a Cnc Lathe Photos Catalog

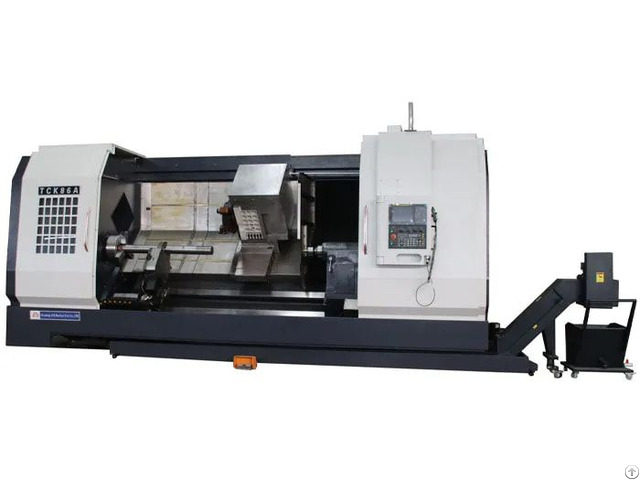

3 - TCK 86A CNC Lathe Machine

This machine tool is an slant machine tool with high speed, high precision and high reliability.

The main components such as bed seat, bed body and headstock are cast with high strength materials to ensure the long-term stability of the machine tool.

Adopting 45 degree integral inclined bed structure and high precision preloaded Taiwan linear rolling guide, the machine has high positioning accuracy, fluent chip discharge and is suitable for high speed and high precision machining.

ACR Machine Tool TCK86A Specifications:

Swing Over the Bed: 860 mm

Swing Over the Slide: 630 mm

Turning Length: 1000/1500/2000+ mm

Spindle Speed: 1500/800 rpm (stepless)

Main Motor Power: 18.5/22 kW

Spindle Nose Specification: A2-11

Spindle Through Hole Diameter: 104 mm (Optional 130 mm)

Chuck Size: 15 inches

Chuck Type: 12-position electric servo turret

Tailstock Type: Hard guide rail

Tailstock Travel: 1000/1500/2000+ mm

Tailstock Sleeve Travel: 150 mm

Tailstock Sleeve Diameter: 160 mm

Tailstock Sleeve Taper: MT6

Cylindrical Cutting Tool: 32x32 mm

Inner Circle Tool: Ф50/Ф40/Ф32/Ф25 mm

X/Z Axis Travel: 430 mm / 1150/1650/2150+ mm

X/Z Axis Fast Moving Speed: 12 m/min (X-axis) / 15 m/min (Z-axis)

X/Z Axis Rail Width: 55 mm / 65 mm

X/Z Axis Positioning Accuracy: 0.008 mm / 0.008 mm

X/Z Axis Repeat Positioning Accuracy: 0.004 mm / 0.004 mm


Company Contact:


  • Phone: 13793705668

  • Address: No.669,Guohe Road,Economic Development Zone, Tengz, tengzhou , shangdong , China

  • Email: Email


Published date: April 14, 2026

  • Business Description: ACR is a China CNC machine manufacturer and factory, providing CNC lathes, milling machines and machining centers with reliable quality for global industries.
