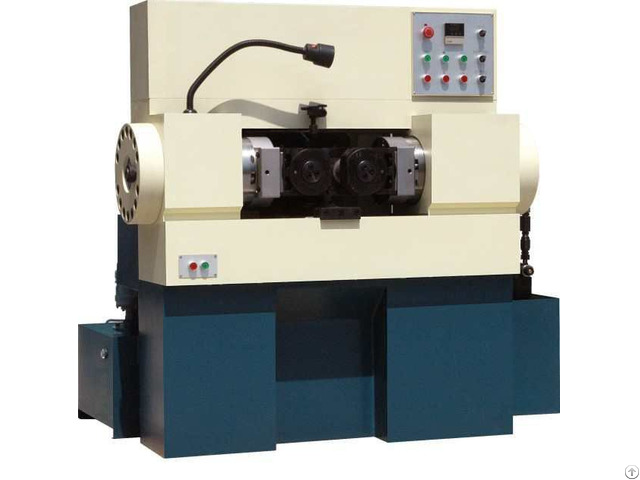

Fd 25t Thread Rolling Machine Price - China
price: 22950.00 Dollar US$
1 - Automatic feeding with adjustable brackets
2 - Speed is adjustable for different products
3 - 75mm hole diameter for SKD11/DC53 thread rolling dies
4 - Max.
Rolling pressure is about 250KN
5 - It is easy to operate and maintain the machine
6 - CE, ISO9001-2008
Specification Working diameter 12-80mm Thread pitch 1.0-8mm Thread length In feed or Thru feed Spindle speed 16/27/37/62rpm (variable speed) Outside diameter of rolling die 170-220mm Inside diameter of rolling die 75mm Thickness of rolling die 160mm Feed stroke 0-12mm Total machine power 14KW Max rolling pressure 25T Supply voltage 380V 3P 50Hz Weight(reference) 3560(KG) Package Dimension(L*W*H) 1630*1650*1750mm Dimension(L*W*H) 1580*1600*1650mm
Company Contact:
- Posted By: Feda Industry Co., Ltd
- Phone: +8613392185053
- Address: No. 608, Hong Hai Building, Hongxing Community, Songgang Street, Bao'an District, Shenzhen, China, ShengZhen , GuangDong , China
- Email:
- Website: https://www.szfeda.com/
Published date: May 15, 2025
- Business Description: We mainly produce thread rolling machine and dies for making external thread on bolts, thread rods, fasteners, etc.
