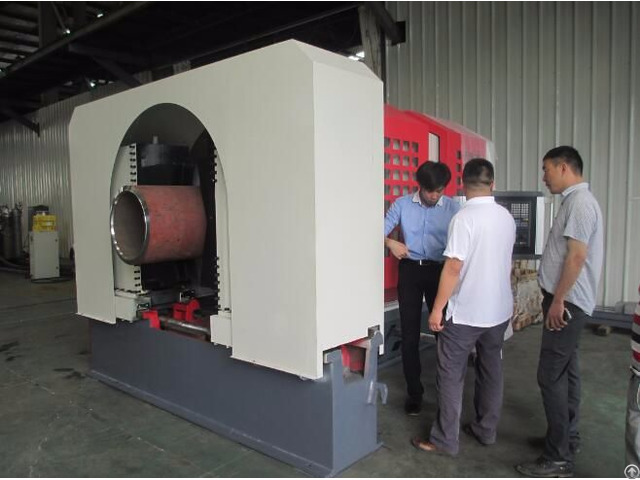

Pipe Prefabrication Cnc Bevel Machine - China

1.

适用管径：dn300-10 00(Φ325-1020)

1 - applicable diameter: dn300-600(Φ325-1020)

2.

适用壁厚：6-180 mm

2 - applicable wall thickness: 6-180mm

3.

适用材质：碳� �, 合金钢, 不锈钢, 低温钢等

3 - applicable material quality: carbon steel, alloy steel, stainless steel and low-temperature steel etc.

4.

坡口型式：Ｕ, ＵＶ, Ｘ, Ｖ, 双Ｖ型, i型

4 - bevel type: u-shape, v-shape, x-shape, v-shape, dual-v and i-shape

5.

刀架角度：0度

5 - cutter read angle: 0 o

6.

横向位移：±100 mm

6 - lateral displacement: ±100mm

7.

夹紧系统：液� �马达左右夹紧

7 - clamping system: hydraulic cylinder clamping

8.

驱动方式：变� �电机+减速机驱动

8 - drive mode: variable frequency motor +reducer

9.

径向进刀：数� �进刀+数控退刀

9 - radial feed: numerical control feed+ numerical control withdrawal

10.

轴向进刀：数� ��进刀+数控退刀

10 - axial feed: numerical control feed+ numerical control withdrawal

11.

进刀速度：0.1- 0.2mm/r

11 - feeding speed: 0.1-2mm/r

12.

切削宽度：0-6m m

12 - cutting width: 0-6mm

13.

轴向驱动：伺� ��电机+减速机+丝杆 丝母

13 - axial drive: servo motor+ reducer +screw rod nut

14.

主轴转速：变� ��无级调速

14 - main shaft speed: frequency stepless governor

15.

轴向位移：300m m(动力头)

16 - axial displacement: 300mm(power head)

16.

控制系统：cnc� ��制

18 - control system: cnc control

17.

控制系统：控� ��系统：本公司专� �技术产品, cnc控制, 流线型控制箱

20 - control system: proprietary technology product of the company, cnc control, streamline control cabinet

18.

设备功率15.2kw( 动力头11kw, 液压2.2kw, 轴向2kw)

21 - equipment power 15.2kw (power head 11kw, hydraulic 2.2kw, axial 2kw)

youtube demo: https: youtu.

be/a6c4iv4yfvy
