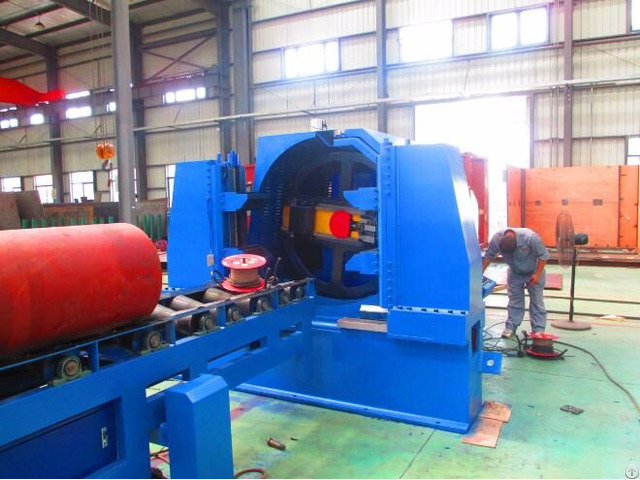

Pipe Prefabrication 1 2m Automatic Beveling Machine - China

-Fixed-Type High Speed Pipe End Beveling Machine

Model: FPEBM-16Da16Db;24Da/24Db; 32Da/32Db/40Db

Performance features

On-line Performance: Good(Designed as per the on-line equipment of the production line)

Beveling Speed: ≤5Min /pipe bevel (DN200 SCH40)

Bevel cutting: cutting a pipe with other equipment such as band saw and then machining each bevel.

Bevel quality: very good

Application: used for machining the U or V shape bevels for numbers of pipes with heavy wall thickness

Technical parameters

Pipe diameter applicable: DN50-400(φ57-426);DN100- 600(φ114-610); DN200-800 (φ219-813) ;DN400~1200

 Pipe wall thickness applicable: 4-90mm/ 6-180MM

Materials applicable: carbon steel, alloy steel, stainless steel and cryogenic steel, ect.

Bevel shape: Ｕ, Ｘ, Ｖ and Double V

Cutting direction: radial automatic differential cutting feed or axial semi-automatic motor cutting feed ; radial automatic differential cutting feed or axial automatic motor cutting feed

Retracting direction: radial automatic motor retracting or axial semi-automatic motor retracting; radial automatic differential cutting feed or axial automatic motor cutting feed

Driven by: motor

Clamping system: work piece is clamped by (screw rod) hydraulic cylinder

Bracket system: screw lifting adjustable

Rev of the principal axis: 3shifts(67-123rpm)/ 9 shifts(34-304rpm)

Axial displacement: 80mm(principle axis) 100mm(machine head)/150mm (principal axis), 300mm (machine head)

Widthwise displacement: ±50mm/±100mm

Bevel angle of tool rest: 0°～37.5°

Control system: gear shift for main shaft, VF speed change for axial direction movement and manual control ; gear shift for main shaft, VF speed change for axial direction movement and PLC control

 Mechenical aligning: At the end of beveling machine conveying system equipped with lifting device could be provided if necessary to adjust automatically the center elevation of the pipe, so as to bevel the pipes with different diameters.

Conveying system: can be equip for roller conveying system if necessary.
