Heating 15t H Industrial Gas Fired Steam Boilersgood Thermal Insulation Material - China

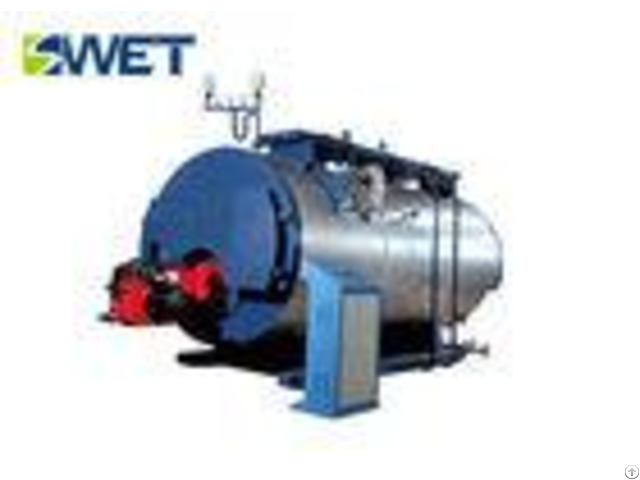

High Afficiency Automatic Horizontal 15T/h 1.6Mpa Gas Stam Boiler For Heating Product description The WNS series of gas steam boilers for the fast-loading horizontal internal combustion three back wet back fire tube structure.

The furnace tube and the wet-smoke tube plate are all butt-welded.

In order to restrain the generation of NOx, a lower furnace volume heat load Product advantages 1 - Boiler automation instrumentation and auxiliary equipment is reasonable, advanced and reliable 2 - Gas steam boiler computer control, high degree of automation, all kinds of safety protection device is complete, easy to operate, safe and reliable operation.

3.80mm thick aluminum silicate fiber for insulation, light weight, good thermal insulation, heat loss Specification - - - - WNS series of automatic gas (oil) steam energy-saving boiler product selection table | Model | Rated evaporation | Work pressure | Steam temperature | Feed water temperature | Air consumption | Test efficiency | Transport dimensions | Unit | t/h | MPa | | | Nm/h | % | mm | WNS20-2.5-Q(Y) | 20 | 2.5 | 226 | 105 | 1407.5 | 97.62 | 8660x3520x4831 | WNS20-1.25(1.6)-Q(Y) | 20 | 1.25/1.6 | 194/204 | 105 | 1459 | 97.51 | 8870x3550x3750 | WNS15-1.0(1.25)(1.6)-Q(Y) | 15 | 1.0/1.25/1.6 | 184/194/204 | 105 | 1126 | 97.2 | 7450x3520x4090 | WNS10-1.25(1.6)-Q(Y) | 10 | 1.25/1.6 | 194/204 | 105 | 837.25 | 96.75 | 6370x2812x3514 | WNS8-1.25(1.6)-Q(Y) | 8 | 1.25/1.6 | 194/204 | 105 | 659.25 | 96.7 | 6000x2920x3430 | WNS6-1.25(1.6)-Q(Y) | 6 | 1.25/1.6 | 194/204 | 105 | 433.51 | 96.58 | 5470x2770x3195 | - - - -

Company Contact:

• Posted By: Henan Swet Boiler Co., Ltd.

• Phone: 86-371-68064938

• Address: NO.8 West Ring Roads , Kaifeng City, Henan Province, China., Kaifeng , Henan , China

• Email:

• Website: https://www.industrial-steamboiler.com

• Business Description: Henan swet boiler Co., Ltd was established in 1954 - We have been focusing on boiler and boiler parts manufacture and sale for over 60 years.

  It is a key enterprise in China engaged in A-class boiler and D1 D2 pressure vessel, have obtained the ISO 9001 certification.
