Full Automatic Coal Fired Steam Boilercorrosion Resistance Material - China

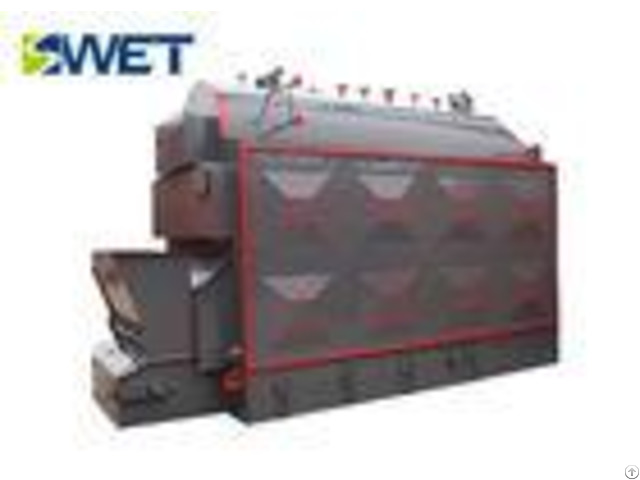

25 t/h Automatic Double Drum Biomass Coal Fired Steam Chain Grate Boiler Product Description 1 - Boilers use the most suitable combustion of biomass fuel combustion equipment reciprocating grate.

2 - Boiler in structural design, the larger relative to the traditional boiler furnace space, while the layout of a very reasonable secondary air, is conducive to combustion of biomass fuel instantaneous precipitation of large amounts of volatile combustion.

3 - Boiler can be equipped with fuel (gas) ignition burner, to achieve ignition automation.

Boiler feed, combustion, slag removal, water supply, ignition can be used automatically control, the operation is very convenient 4 - The use of double-drum vertical layout, up and down assembly structure, the overall compact, short installation cycle, saving boiler room, reduce capital investment.

5 - Heating surface layout fully, good insulation effect, high thermal efficiency of the boiler.

6 - Bilateral wind, independent plenum, with a uniform wind, easy to adjust.

7 - Boiler furnace arch momentum design, high combustion efficiency.

Technical Parameters - - - - Boiler type and parameter list of double boiler barrel series chain grate boiler | Boiler model | Rated evaporation | Working pressure | Steam temperature | Water supply temperature | Exhaust temperature | Thermal efficiency | Boiler dimensions | Unit | t/h | Mpa | | | | % | mm | SZL10-1.25-T | 10 | 0.7/1.0/1.25 | 170/184/194 | 20 | 150 | 80 | 8830x3180x5730 | SZL15-1.6-T | 15 | 1.0/1.25/1.6 | 184/194/204 | 104 | 155 | 80 | 14000x4174x614 | SZL20-1.6-T | 20 | 1.0/1.25/1.6 | 184/194/204 | 104 | 155 | 80 | 15820x4620x8680 | SZL25-2.5-T | 25 | 1.25/1.6/2.5 | 194/204/224 | 104 | 160 | 80 | 12800x6000x8420 | SZL30-2.5-T | 30 | 1.25/1.6/2.5 | 194/204/224 | 104 | 160 | 80 | 13000x7100x9500 | SZL35-2.5-T | 35 | 1.25/1.6/2.5 | 194/204/224 | 104 | 160 | 80 | 3000x7600x9800 | - - - - FAQ 1 - Q: What are the limitation (size, humidity, chemical element concentrations) of coal fuel/solid fuel/wood fuel? A: Size requirement of coal: 6-25mm Size requirement of blending coal: <50mm (the coal less than 6mm should less than 30%) Diameter of biomass particle: 6~10mm, length: 25~50mm, water content < 15%, ash content < 2%, sulphur content<0.07%, chlorinity <0.07%, nitrogen content < 0.5% 2 - Q: What is the boiler warranty? A: 1 year 3 - Q: When you ship my order? A: Within 30 days after payment.

Company Contact:

• Posted By: Henan Swet Boiler Co., Ltd.

• Phone: 86-371-68064938

• Address: NO.8 West Ring Roads , Kaifeng City, Henan Province, China., Kaifeng , Henan , China

• Email:

• Website: https://www.industrial-steamboiler.com

• Business Description: Henan swet boiler Co., Ltd was established in 1954 - We have been focusing on boiler and boiler parts manufacture and sale for over 60 years.

  It is a key enterprise in China engaged in A-class boiler and D1 D2 pressure vessel, have obtained the ISO 9001 certification.
