Pipe Prefabrication Automatic Tube Sheet Tig Welding Machine - China

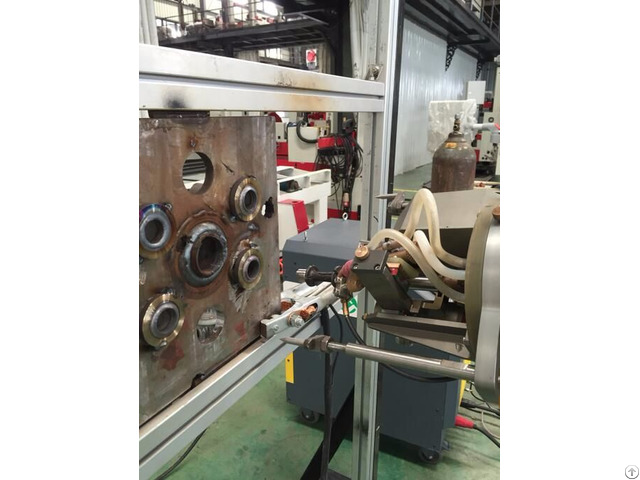

Automatic pulse tube sheet welding machine(GTAW/TIG)

Model No: PAAWM-80A

Technical parameters:

Welding source

Model of the welding source: Panasonic TIGSTAR400

Type of power source: IGBT inversion

Welding current: 4-315A

Duty cycle: 315A 60% ; 244A 100%

Rated load voltage: 70V

Rated power: 9.5 kw

Fluctuation range of input voltage allows: 380v±10%

Frequency: 50/60Hz

Welding head

pipe diameter: Φ8～Φ80mm(or as per request)

Pipe wall thickness: 0.5-6.5mm

The maximum length of tube elongation: 10mm

The maximum depth of tube Indentation: 2mm

Feeding Wire adjustable angle: ≤45°

Feeding speed: 0.1～1.5m/min

Dia of filler wire: 0.8mm

Rev speed of head: 0.15～6r /min

Welding speed: 50～150mm/min

Tungsten adjustable angle: ≤45°

Positioning spindle cooling: Automatic forced cycle water-cooled

Program-controlled system

Welding current adjustment range: 4～315A

Current rise time: 0.1～20s

Current fall time: 0.1～20s

Pulse Frequency: 0.5～500Hz

Duty cycle adjustment range: 10%～50%

Aspirated time in advance：1～20s

Time lag aspirated: 2-20s

Feeding speed adjustment range: 0～1.5m/min

Welding head rev speed adjustment range: 0.15～6r/min

Built-in storage capacity of 100 Welding Code

Can partition paragraph: 1-6 paragraph

Display: LCD

Gantry and 5D system

Lateral movement stroke: 16000mm

Vertical Movement stroke: 16000mm

Axial movement stroke: 300mm
