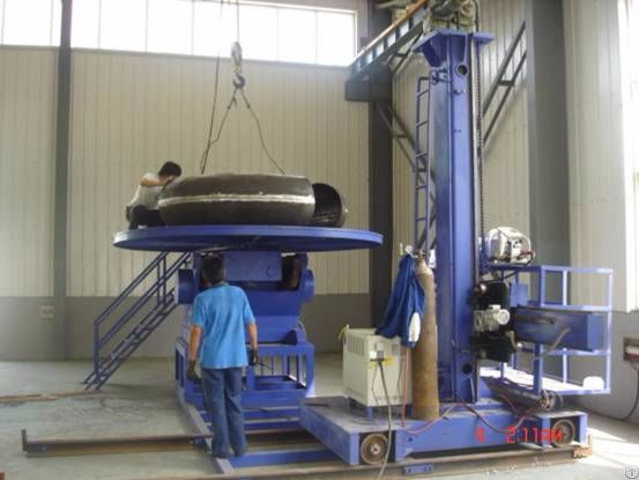

Welding Elbow Automatic Welding Machine

Model: WEAWM -24A/B;32A/B

Performance features

Online-performance: Design not for the working of production line

Application: Used for screen welding of press-welding elbow butt welds

Welding Capacity: 15～30 meters/day(SCH40)

Operability: very good (applicable and easy to operate even if you are a new user within a short period of time)

Surface Forming: Excellent (the welding gun will always be positioned in the optimum position)

Welding compliance rate: 98% min (without re-working for the skilled operator).

Driving Reliability: good

Technical parameters

Pipe diameter applicable: DN400～800mm

Pipe wall thickness applicable: 3～30MM

Materials applicable: carbon steel, alloy steel, stainless steel and cryogenic steel, ect.

Welding line applicable: Used in screen welding of press～welding elbow butt welds

Driving System: positioner driven with VF speed adjustment

Bracket System: Cross weld holder which is specially made by our company

Adjustment Mode: electric cross regulator

Oscillating system: a product of our patented technology, step motor driving and digital displaying oscillating width adusting(A)/none(B)

Control system: a product of our patented technology, PLC control (A) /non-PLC control (B).

Welding Mode: FCAW/ SAW

Welding Power: our OEM products which are famous in China (or as per customers’ demands)
