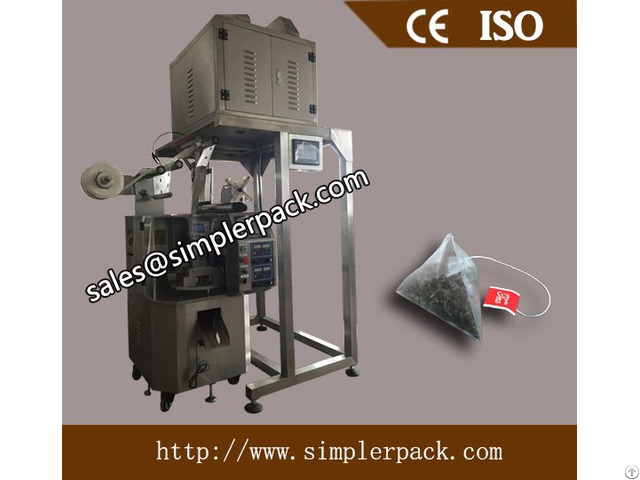

Updated Pyramid Nylon Tea Bag Packing Machine - China

Brief Introduction:

1) Automatic multi-function packaging forming machine;

2) Suitable for all kinds of drinking tea leaves, herbs and flowers;

3) Ultrasonic sealing method, Convertible pyramid and flat bag type;

4) Nylon(PLA/non-woven) bag materials; with thread and tag;

5) High quality with international brand-name parts;

6) All-round process: filing, weighing, bag forming, sealing, cutting and counting etc.

7) Quality Approval: CE, ISO9001: 2008

8) Manufacturing experience: 12 years

Application:

It is suitable for packing drinks granules in pyramid/triangle bag with outer envelop, such as loose leaf tea(like Darjeeling, Assam, Ceylon, Keemun etc.

), organic herbal tea, health care tea, flower tea(like rose tea, jasmine tea etc.

), scented tea, fruit tea and

others, etc.

Features:

1 - The feasible package materials of the triangle bag machine is nylon, PLA, non-woven fabric materials imported from Japan, which is non-toxic, non-bacteria, heat-resistant, high-quality and food-grade, conforming to our national safety inspection

standard.

2 - The machine can uses a unique sealing method - ultrasonic.

It can seal tightly, safely, and reduce the width of the extra edge, avoiding any waste of packing materials.

3 - The machine can switch the bag shape between pyramid(triangle) and flat(rectangle), and also the sealing method can be

switched into back sealing.

4 - The machine can be linked with the outer pouch packing machine.

5 - Each electric scale of this machine is independent, each one can be operated alone.

Technical data:

Machine type: Tea Bag Packing Machine Series

Machine model: C20DX

Machine name: Updated Export-oriented Automatic Pyramid Tea Bag Packing Machine with 4 Head Weighs

Packing material: Nylon material imported from Japan, non-woven fabric, 100% biodegradable transparent materials, PET, PLA, etc

Measuring method: Electric scale

Filling range: 1-10g/bag, accuracy: ≤ ±0.1g/bag

Packing speed: 30~60 bags/min

Packing roll width: 120, 140, 160(mm)

Sealing length: 50, 60, 70, 80(mm)

Sealing method : Ultrasonic sealing and cutting

Qty of sealing device : 2 sets

Air supply: ≥0.6MPa(can be equipped with air compressor)

Motor power: 220V, 50HZ, 1.2KW

Machine dimension: 1800*900*2300mm(L*W*H)


Machine weight: 500KG
