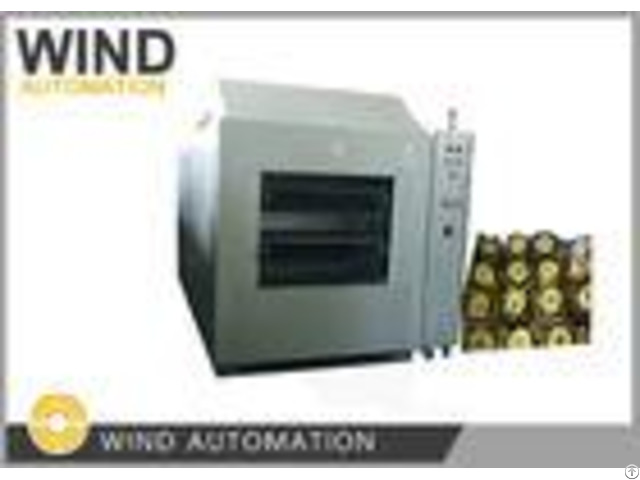

Electricity Or Diesel Power Stator Varnish Dipping Machine Motor Insulation - China

price: check with company for price

Electricity or Diesel Power Stator Varnish Dipping Machine Motor Insulation Application: Pump motor stator, Industrial motors, household appliances motor stator winding, transformer windings and other coils insulation Advantages: 1. Fully automatical expect loading/unloading stator, ensure stable varnish stator consistency, quality and ease the labor 2. After dipping the paint stator film uniform, eliminating the rubbing paint process, which can save insulation paint varnish, solvents and labor cost 3. Quick-drying insulating paint can shorten the production cycle, energy and raw materials saved, at the same time greatly improve the working environment of the operator. Parameter: - - - - Name | Unit | 130-16 | 130-26 | 130-46 | Station | pcs | 16 | 26 | 46 | Dipping depth | mm | 130 | 130 | 130 | Basket area | mm | 850300 | 850300 | 850300 | Loading- bearing | kg | 80 | 80 | 80 | Pitch time | min | 190min adjustable | Heat rise time | min | <45 | Tunnel Tem. | | 160 | Dimension | m | 3.82.22.5 | 62.22.5 | 102.22.5 | Power | kw | 40 | 60 | 80 | - - - - Stator varnish machine example: Working position: 26 Dipping depth Varnish impregnation: 130mm Rack loading area: 850*300 Rack loading weight: 80Kg Pitch time: 1-30min adjustable Heating time: <45 min Tunnel working temperature: 150 Power consumption: 60 Dimension: 6*2.2*2.5 Weight: 5.8 Ton We produce stator varnish machine in electricity power, diesel power or gas, It has two types mechanism in the varnish area 1. Varnish tank goes up and down which is driven by the screw rod 2. Varnish tank fixed and the chain goes down and up Situation 1 is suitable for stator with dipping time requirement, suppose the varnish dippin time is 2 minutes and pitch time is 5 minutes, stator don't need to stay inside the varnish tank for 5 minutes In situation 2, the varnish tank don't move and don't need transmission, no drive needed, Stator varnish machine whichmainly applied to stator winding insulation treatmen composed of machine body, water cooler chiller and varnish supply tank. Question and Answer: Question: We cannot recycle the varnish because the varnish is thickened after the trickling process. The temp on the armature surface is hot. The warm varnish is moving slowly inside the tubes of the trickling pump. I am wondering if the chiller can help to thinner the varnish so that it can move more freely inside the tube. Answer: In the stator varnish and armature rolling and dipping machine, chiller is helpful to solve aboveproblem Usually the varnish dipping machine for stator and rolling and dipping machine for armature need chiller, Because the heated workpiece is in the varnish which transfer heat and rise varnish temperature, The chiller will keep the varnish quality, no deterioration and thinner, Please click below picture to view video [] Contact:Shanghai Wind Automation Equipment Co., Ltd Email: [emily@motor-machinery.co m] Skype: motor.machinery Mobile: +86-17721374887


Company Contact:


  • Phone: 86-21-58992293

  • Address: No.4 Building , No.388, Kongjiang Road,Yangpu District,200093,Shanghai,China, Shanghai, Shanghai, China

  • Email: Email


Published date: April 24, 2018 -

  • Business Description: Shanghai Wind Automation Equipment Co., Ltd supply motor automation solution for global motor manufacturers.Through continuous innovation and participating in globalization, it has developed into a large enterprise that integrates R&D, production and sales to provide motor solutions for customers.
